QuestionQUESTION: I have a Tecumseh H-70-130266L engine on an Ariens snowblower. When I went to pull on the starter handle today, something snapped, and the recoil starter won't turn the engine over. I took the recoil starter off, and the starter cup appears cracked in a couple of places. There was also a small spring lying inside the starter cup, (which I have no idea where it goes). After looking at the recoil starter and the starter cup, is the starter cup all that is needed to repair my starter?
ANSWER: Hello Randy:
>>The Starter Cup (Tecumseh Part #32125) should be the Only Replacement Part you Require if the Spring has Not been Damaged.
>>The Spring is Most Likely the Starter Dawg/Tang Spring that is Under the Metal Cap the Holds the Recoil Starter Pulley into the Recoil Starter Housing.
>>Can you Send me a Picture of this Spring so I can be Sure I am Thinking of the Correct Style Recoil Starter for this Unit, Please.
>>The Manual and Online Manual Do Nor Show which Style Recoil Starter is on this Engine.
>>You can View a Breakdown/IPL of this Engine at this Site Addy, http://www.outdoordistributors.com/ and Select the T. Then Select Tecumseh. Then Select Don't have Part Numbers. Then Enter the Model Numbers . Then Select your Model and Download the File for Online Viewing.
>>Thanks.
Respectfully
John
PS: I am Allowed to Answer 3 Questions a Day. If you See I am Maxxed Out, then Try Submitting your Question at or Just After 8pm EST (US). My New Day Starts then. Follow Up Questions are Received Anytime. Comments and Ratings are Greatly Appreciated. Thanks.
Respectfully
John
---------- FOLLOW-UP ----------
Starter
QUESTION: John,

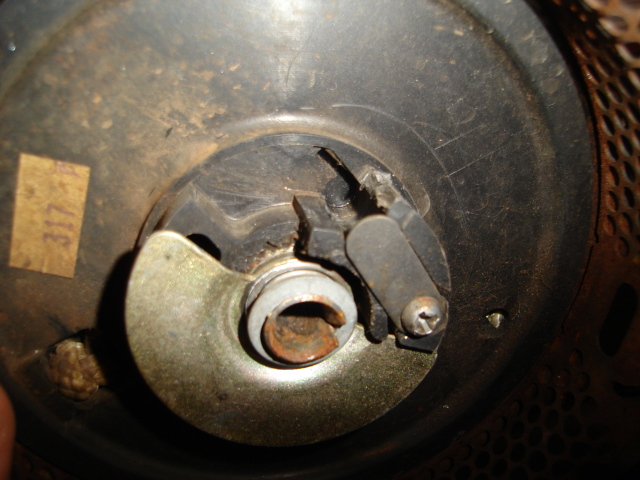

Unfortunately, I've lost the spring. I've attached an image of the inside of the recoil starter--it looks as if something is broken there also, but I never found a part that looked like it came from there.
AnswerHello Again Randy:
>>Thanks for the Picture.
>>Ouch!!
>>One of the Starter Tangs/Dawgs is Missing and the Starter Pulley Requires Replacing.
>>After Viewing the Breakdown for this Engine, I See the Recoil Starter is Offered as a Complete Assembly (part # 590604).
>>The Spring is Most Likely the Tang/Dawg Spring.
>>Your Local Small Engine Service Center Might be Able to Assist you in Purchasing Just the Lost Tang/Dawg, Spring, Pulley and Any Other Parts that Are Required.
>>You can View a Breakdown/IPL of this Engine at this Site Addy, http://www.outdoordistributors.com/ and Select the T. Then Select Tecumseh. Then Select Don't have Part Numbers. Then Enter the Model Numbers . Then Select your Model and Download the File for Online Viewing.
>>As Always, If you Hit a Snag or this Does Not Correct the Problem, I am Here if You Require More Assistance. Hope this Helps. Let me Know What Happens, Please. Have a Happy Holiday Season and May the All Mighty Bless You and Yours. Be Safe and Happy. Thanks.
