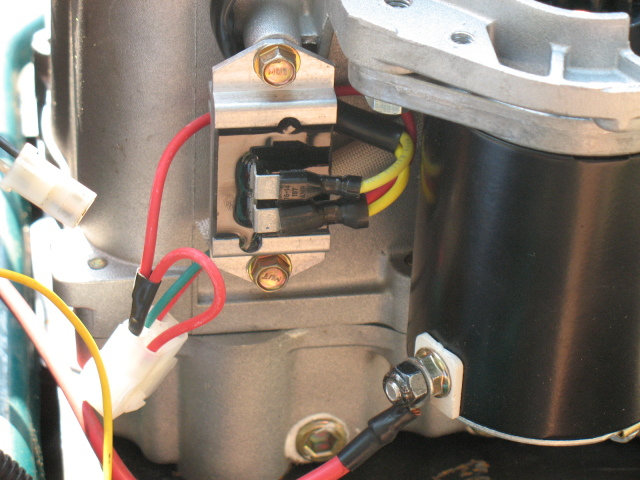

I purchased a replacement Tecumseh (OV490EA 208042) vertical engine for my Murray Lawn Tractor (42567x6A). The replacement engine has a slightly different wiring set-up than my original Tecumseh engine (OHV17 204603A). What do I connect to the stator wiring. There are (2) yellow wires coming from the stator to a voltage regulator. From the regulator a red wire is available to connect (assuming this is for the dc connection) to the black/white wire plug from the Murray starter switch. My original electrical schematic shows a red dc output & a black ac output from the stator to the black/white wire plug. The new voltage regulator only has a dc output available (without directly attaching the ac wiring to the connector on the voltage regulator. My second problem is what do I connect the green lead coming off of the armature on the new engine? Finally, there is a red lead coming from the afterfire solenoid. Can this be connected to the yellow lead (available) that is part of the safety circuit on the Murray mower?
AnswerHello Peter:
You can View a Breakdown of this Unit at this Site Addy; http://www.ordertree.com/ and Select Murray from the Dropdown List Provided and Enter the Model Numbers and CLick Go. Then Select Download PDF. Now Select the OEM (B&S Yard Power Products) and Enter the Model Numbers ((42567x6A) and Click Searh. Now Double Click on the Model in the Results Area. Now Select the Electrical File. You can Use this Schematic to Rewire the New Engine. If you have Any Questions, Please Use this Schematic for Reference. Thanks. If you Hit a Snag or this Does Not Correct the Problem, I am Here if You Require More Assistance. Hope this Helps. Let me Know What Happens, Please. May the All Mighty Bless You and Yours. Thanks.
