QUESTION: I have a toro trimmer 51970A.  I am attempting to replace the throttle cable.  In doing so, a spring shot out of the handle and I don't know where the spring is supposed to go.  I looked at the diagrams that toro has but they were not helpful.

ANSWER: Hello Paul:

The Spring is Supposed to Push the Trigger Itself Back when it is Pulled with your Finger. One End of the Spring has a Seat/Catch in the Plastic Trigger Housing and a Seat/Catch on the Trigger Itself. If you Hit a Snag or this Does Not Correct the Problem,  I am Here if You Require More Assistance. Hope this Helps. Let me Know What Happens, Please. May the All Mighty Bless You and Yours. Thanks.

Good Luck

Respectfully

John

PS: I am Allowed to Answer 10 Questions a Day. If you See I am Maxxed Out, then Try Submitting your Question at or Just After 8pm EST (US). My New Day Starts then. Thanks.

Respectfully

John

---------- FOLLOW-UP ----------


Handle   QUESTION: Thanks for the response.  I need a little more information.  I attached a picture of the handle.  Could you be more specific as to where the long and short end of the spring goes.  Does it involve the screw hole that the trigger uses to hold it in place.  Any further description is greatly appreciated.

Thanks,

Paul

ANSWER: Hello Paul:

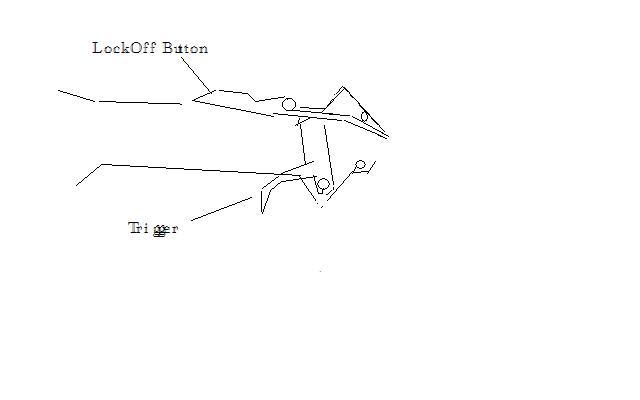

You are Correct. Usually the Spring is Held in Place by the Trigger Screw and the Long Section of the Spring Usually is the Section that Pushes the Trigger and Pulls the Cable Back. I am Trying to Locate a Toro Trimmer in the Shop to See if I can Get some Good Pictures of the Trigger Spring while it is in the Housing as Designed. As Soon as I Locate the Trimmer, I will Follow Up with Pictures. Thanks.

Respectfully

John

PS: I am Allowed to Answer 10 Questions a Day. If you See I am Maxxed Out, then Try Submitting your Question at or Just After 8pm EST (US). My New Day Starts then. Thanks.

Respectfully

John

---------- FOLLOW-UP ----------

QUESTION: Were you able to find any pictures?

Thanks again for all your help.

Respectfully

Paul

Answer
Hello Paul:

I will be Sending Pictures to you on 6/08/08 in the PM. I Just Located a Trimmer this PM and will Disassemble the Trigger and Take the Pictures then. Sorry for the Delay. I had Trouble Locating the Trimmer. Thanks.

Respectfully

John

PS: I am Allowed to Answer 10 Questions a Day. If you See I am Maxxed Out, then Try Submitting your Question at or Just After 8pm EST (US). My New Day Starts then. Thanks.

Respectfully

John

Hi Again Paul:

My Daughter has Taken Several Pictures and None of them Show the Internal Spring. All the Pictures Show is the Trigger Housing. She is Trying some Different Approaches and Hopefully I can Send you a Picture Later in the Day. Thanks for your Patience.
