Steering Column Repair: small piece unable to remove

Question

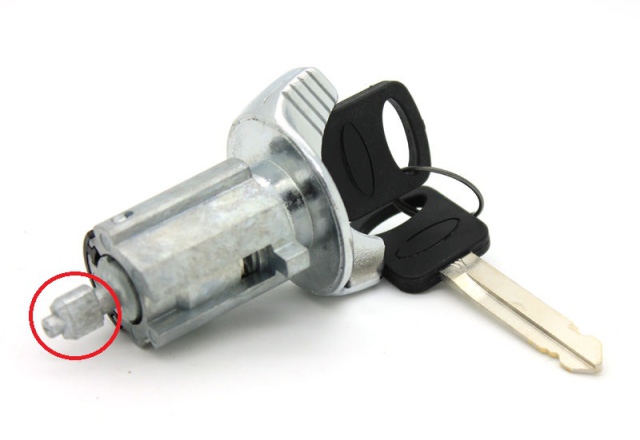

Piece in question   QUESTION: I am trying to replace a ignition lock cylinder on a 96 Ford F350 with out a airbag. After a attempted theft I was able to remove the damaged cylinder. They attempted to pull it with a dent puller which the screw broke. The small pin on the end of the lock  cylinder broke off in the column. It is pot metal. I know it has to be in the ON position to come out but I cant figure a way to retrieve it out.


Igniton actuator tip f   ANSWER: Hi Jason

Sorry about your truck.

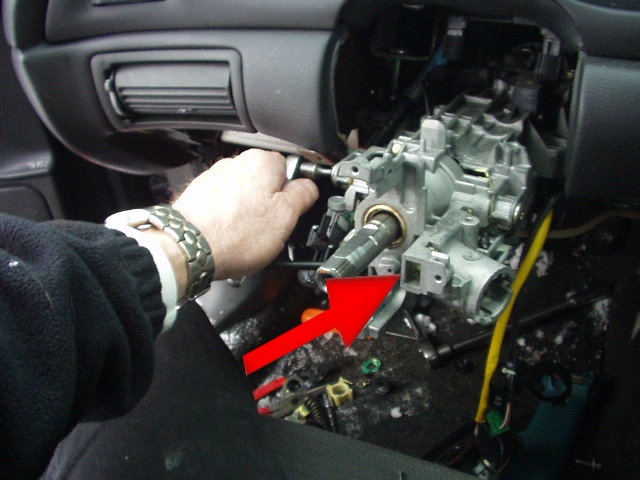

The easiest way to remove that piece is to grab what little bit you can with a needle nose vise grip pliers and turn it, just like it was the key, to the "On" position.  If you cannot do that, the you need to remove the steering wheel and you will see the very end of the white plastic actuator facing you.  (Photo attached).  With a screwdriver, push it and you will feel the detents just like they key was moving it.  2 clicks towards the dash and your piece should be in position to simply pull out.

That should do it.



---------- FOLLOW-UP ----------

QUESTION: Yes. Can the plastic gear be removed with out dissembling the steering column? The piece is wedged in there pretty good.

Answer
The white gear cannot be removed until you disassemble the column and housing...you don't want to go that way.  Let's focus on the gear inside the lock cylinder hole.  All you need to do is get it to move to the "On" position.  If you cannot do that, then remove the green plastic retainer inside the lock cylinder hole...it snaps out of place with a right angle pick.  Then rotate the steel thrust washer 1/4 turn clockwise and remove that piece.  Then you can get the broken tip out.
