Steering Column Repair: 1976 Chevy Custom Deluxe Steering Column, tilt column, chevy custom

Question
I need a detailed drawing of the steering column in order to put it back together and reinstall it correctly, do you know where i can get that drawing?

Answer

GM Tilt column Hi Gregory:

You don't say if it's tilt or non-tilt, so I will have to just guess...(tilt)

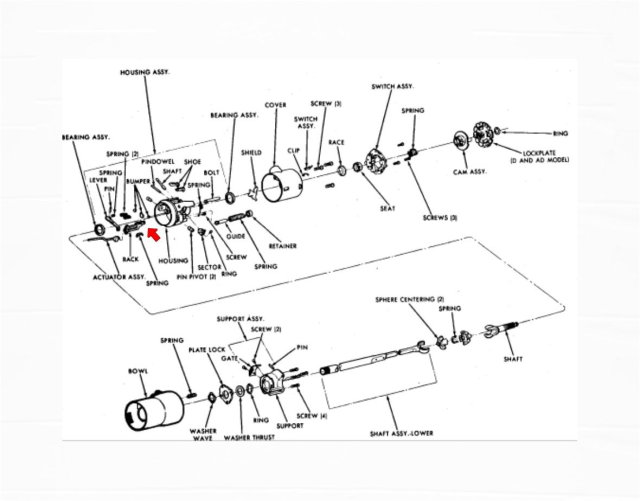

Attached is an exploded view of a GM tilt column ans well as a link to our company website that has video of step-by-step dis-assembly and reassembly of the same
www.stolenandrecovered.com/howto/instruct.php

Good luck
Lastly, if you find you need any parts for that, our company stocks and sells most everything you would need.

Doug
