QuestionQUESTION: i need a code chart for a 97 150 ford and how can i clear the falt after the repairs are done?
ANSWER: Hi Joey:
Are you talking about an airbag fault code chart or engine fault codes?
Do you have a code you want me to look up?
I need a little more information before I can help you successfully
I'll watch for your reply
Doug
---------- FOLLOW-UP ----------
QUESTION: sorry, i was talking about the airbag system. i am showing a code 52.
Answer

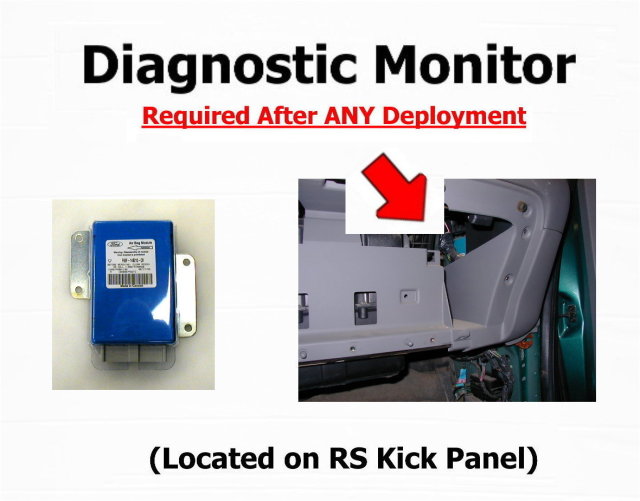

Diagnostic Monitor
Joey:
A code 52 is a low voltage code for the airbag system. If your vehicle has lost battery voltage, it will throw this code, but should reset itself when you start the truck and the alternator charges the system above 9 volts. check the #2 fuse (10 amps) to make sure it's not blown.
If o the other hand, your system deployed and you didn't change all the required parts, you will need to finish the job and replace the diagnostic monitor. That's where the code is coming from and after a deployment,it's a throwaway unit.
For more information and the full fault code chart, you can visit my company website. You don;t need to buy a subscription unless you want to. I've given you all the information in there about your fault, but you may want to anyway.
The purpose of our website and company is to help people diagnose and repair airbag problems themselves without taking them to the dealer (if possible). It offers all the photos and data you need to understand your airbag system, read the codes and reset the light. It’s a pay site, but it certainly is worth the money ($14.95 for 1 day full access)
www.airbagsolutions.com
Good luck
Doug
