QuestionQUESTION: Is there a scanner available(for do-it-yourself-ers) to check and clear engine codes for this year's model? All the generics start at 1995 or 1996.
ANSWER: Yes, a generic OBDII scanner should work. OBDII is a universal language and all OBDII cars must adhere to it as mandated by federal law. NHTSA It will not however, give you the Volvo specific (proprietary) codes. AST makes one that will, but is 2k+ to purchase.
Mark
---------- FOLLOW-UP ----------
QUESTION: Mark, thank you for your response to my question. Could you put me on the path to locate and purchase the scanner that AST makes?
Answer

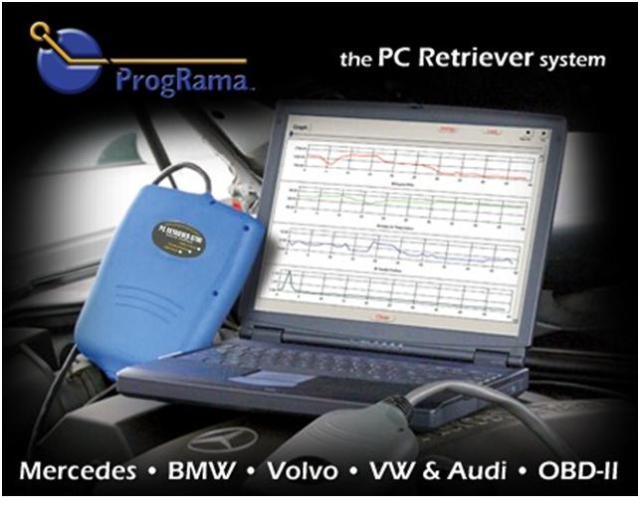

P.C. Retriever
Tony, wow I'm really behind the times.AST sold it's scan tool business two years ago to Programa. 1-800-961-7226. It's called the P.C.Retriever. www.pcretriever.com. It's a laptop based tool, you need your own laptop(Not included). For Volvo only coverage it is $2634.00. Here's what it covers.
Systems Year Get Faults Reset Faults Live Data Activations
Engine*
850 (Motronic 4.3, 4.4 only) 1994-1998
960 (Motronic 4.4 only) 1996-1997
C70, S70, V70, S90, V90 1998
S70 1999-2000
C70, V70, V70 XC, XC70 1999-2006
S80 1999-2006
V40, S40 2000-2006
S60 2001-2006
XC90 2003-2006
Electronic Automatic Transmission**
850 1996-1997
960 1996-1997
C70, S70, V70 1998
S70 1999-2000
C70, V70, V70 XC, XC70 1999-2006
S80 1999-2006
V40, S40 2000-2006
S60 2001-2006
XC90 2003-2006
ABS & Traction Control
850 1996-1997
S90, V90 1998
C70, S70, V70, V70 XC, XC70 1998
S70 1999-2000
C70, V70, V70 XC, XC70 1999-2006
S80 1999-2006
V40, S40 2000-2006
S60 2001-2006
XC90 2003-2006
SRS (Airbag)
850, 960 1996-1997 *** ***
S90, V90 1998 *** ***
S70 1998-2000 *** ***
C70, V70, V70 XC, XC70 1998-2006 *** ***
S80 1999-2006 *** ***
V40, S40 2000-2006 *** ***
S60 2001-2006 *** ***
XC90 2003-2006 *** ***
Volvo Software Application Table
Digital Systems 1994 - 2006 Models
. . . more VOLVO >
Part# 8708 Volvo Software Kit
Systems Year Get Faults Reset Faults Live Data Activations
Instrument Cluster (Includes Driver Information Module)
S70 1999-2000
C70, V70, V70 XC, XC70 1999-2006
S80 1999-2006
V40, S40 2000-2006
S60 2001-2006
XC90 2003-2006
Service Light Reset SRI
850 1996-1997 *** *** ***
S70 1998-2000 *** *** ***
C70, V70, V70 XC, XC70 1998-2006 *** *** ***
S80 1999-2006 *** *** ***
V40, S40 2000-2006 *** *** ***
S60 2001-2006 *** *** ***
XC90 2003-2006 *** *** ***
Central Electronic Module (Body Electronics)
S80 1999-2006
V70, V70 XC, XC70 2001-2006
S60 2001-2006
XC90 2003-2006
Climate Control
S70 1999-2000 ***
C70, V70, V70 XC, XC70 1999-2006 ***
V40, S40 2000-2006 ***
S60 2001-2006 ***
XC90 2003-2006 ***
Passenger Door Module
S80 1999-2006
S60, V70, V70 XC, XC70 2001-2006
XC90 2003-2006
Driver Door Module
S80 1999-2006
S60, V70, V70 XC, XC70 2001-2006
XC90 2003-2006
Power Seat Module
S80, C70 1999-2006
S60, V70, V70 XC, XC70 2001-2006
XC90 2003-2006
Volvo Software Application Table Continued
. . . more VOLVO >
Volvo Software Application Table Continued
Systems Year Get Faults Reset Faults Live Data Activations
Phone Module
S80 1999-2006 ***
S60, V70, V70 XC, XC70 2001-2006 ***
XC90 2003-2006 ***
Rear Electronic Module
S80 1999-2006
S60, V70, V70 XC, XC70 2001-2006
XC90 2003-2006
Road Traffic Information
S80, C70 1999-2006
S60, V70, V70 XC, XC70 2001-2006
XC90 2003-2006
Audio Module
S80 1999-2006 ***
S60, V70, V70 XC, XC70 2001-2006 ***
XC90 2003-2006 ***
Steering Wheel Module
S80 1999-2006
S60, V70, V70 XC, XC70 2001-2006
XC90 2003-2006
Upper Electronic Module
S80 1999-2006
S60, V70, V70 XC, XC70 2001-2006
XC90 2003-2006
Lock and Alarm
S70, V70, V70 XC, XC70 1999-2000
C70 1999-2006
Immobilizer
S70, V70, V70 XC, XC70 1999-2000 ***
C70 1999-2006 ***
Rollover Protection
C70 (Convertible only) 1999-2006
Cab Control System
C70 (Convertible only) 1999-2006
Timer
S40, V40 2000-2006 *** ***
Accessory Electronic Module
S80, S60, V70, V70 XC, XC70 2001-2006
XC90 2003-2006
. . . more VOLVO >
Systems Year Get Faults Reset Faults Live Data Activations
Gas Discharge Light Module
S40, V40 2001-2006 ***
V70, V70 XC, XC70 2001-2006 ***
S60 2001-2006 ***
Infotainment Control Module
XC90 2003-2006 ***
Antenna Tuner Module
XC90 2003-2006 ***
Media Player Module
XC90 2003-2006 ***
Multimedia Module
XC90 2003-2006 ***
Subwoofer Module
XC90 2003-2006 *** ***
* The following engines are supported:
B2534T3 B5234T3 B5244T3 B6284T
B2534T9 B5234T8 B4244T7 B6294S
B4204TCVVT B5244S B5244T B6294S2
B4204T3 B5244S6 B5254T2 B6294T
B4204T4 B5244T B5254S DENSO B6304S3
B5244T2
** The following transmissions are supported:
AW30-40 AW50AWD 4T65EV
AW50-42 AW55-50SN 4T65EV-GT
AW42AWD AW55-50/51SN 4T65AWD
*** Not supported by control module.
