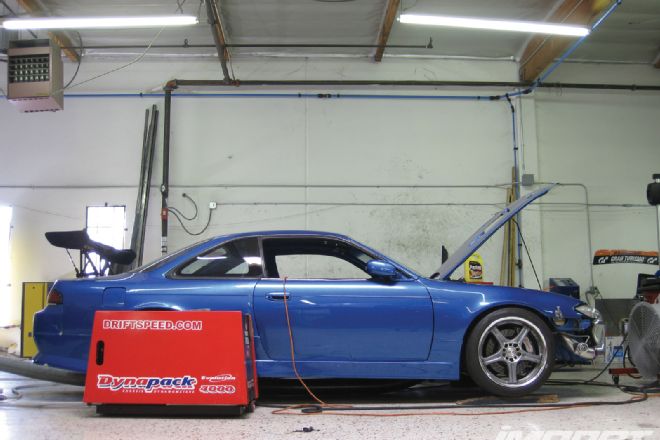

It's been a long and arduous journey, but Project Turbo KA24 has finally been completed. Over the past couple of months, Naoto Negishi of NPD has dedicated long hours to complete this project. Since we last left off, the entire powertrain was installed, along with most of the necessary hardware to propel the engine to our targeted goal of 750 hp. But just as the human body doesn't survive off the heart and lungs alone, we conclude the final chapter of our build by developing the brain, veins and nervous system of the KA24, before heading off to the local dyno to see if the engine has what it takes to meet our power goal.
|
Project KA24 Turbo - Tech Knowledge
Final Verdict
Although it took a great amount of planning and work, our initial goal of building the stereotypical junk motor into a viable monster engine has been met. More so, we hope that it has shed some light on the process of building a high-output race engine. Although it may have seemed tedious, all the exacting measurements paid off in the end.
BREAKDOWN NPD PROJECT KA750 ENGINE MAKE NISSAN ENGINE BLOCK KA24DE BORE X STROKE 90.0 X 96.0 MM POWER 802 HP @ 6,632 RPM TORQUE 650.9 LB/FT @ 6,163 RPM BOOST 2.55 KG/CM2 DYNO DRIFT SPEED DYNAPACK BOTTOM END CRANKSHAFT NPD FULLY COUNTERED BILLET CRANK CONNECTING RODS BRIAN CROWER PRO SERIES PISTONS NPD, 9.5:1 COMPRESSION WITH WPC TREATMENT BEARINGS NISSAN OEM WITH WPC TREATMENT OIL PUMP NISSAN OEM WITH WPC TREATMENT CRANK PULLEY ATI OIL PAN XCESSIVE MANUFACTURING OIL FEED (AUXILIARY) ACCUSUMP OIL SUMP GREDDY CYLINDER HEAD CYLINDER HEAD PORTING BY NPD, MACHINE WORK BY PORTFLOW CAMSHAFTS BRIAN CROWER 272 CAM GEARS JIM WOLF TECHNOLOGY VALVES SUPERTECH, STAINLESS AND INCONEL VALVE SPRINGS SUPERTECH VALVE SPRING RETAINERS SUPERTECH TITANIUM VALVE GUIDES PORTFLOW BRONZE VALVE GUIDES VALVE SEATS PORTFLOW BRONZE VALVE SEATS BUCKETS SUPERTECH INNER SHIM OTHER PARTS OIL COOLER GREDDY HEAD GASKET COMETIC 1.5 MM HEAD STUDS AMS 11 MM MAIN STUDS AMS 10 MM THERMOSTAT NISMO RADIATOR GREDDY TURBO PARTS TURBO HKS T51R-SPL WASTEGATE TURBOSMART POWER-GATE60 EXHAUST MANIFOLD NPD SPL DOWNPIPE NPD SPL 90 MM INTERCOOLER GREDDY FOUR-ROW BLOWOFF VALVE GREDDY TYPE-R INTAKE MANIFOLD INTAKE MANIFOLD NPD SPL VACUUM BLOCK BLOX RACING THROTTLE BODY NISSAN Q45 FUEL INJECTION INJECTORS RC ENGINEERING 1,600 CC FUEL RAIL GREDDY FUEL PUMP AEROMOTIVE A1000 EFI SYSTEM FUEL PRESSURE REGULATOR AEROMOTIVE A1000 EFI SYSTEM FUEL LINES AEROMOTIVE A1000 EFI SYSTEM ECU MOTEC M600 BOOST CONTROL MOTEC M600 TUNING NPD HARNESS SAKATA MOTORSPORT ELECTRONICS DASH DISPLAY AIM SPORTS MXL PRO COIL PACKS OKADA PROJECTS PLASMA DIRECT S2000 SPARK PLUG GREDDY PRO IRIDIUM DRIVETRAIN FLYWHEEL AASCO MOTOSPORTS ALUMINUM FLYWHEEL CLUTCH TILTON TRIPLE PLATE TRANSMISSION NISSAN Z32 FIVE-SPEED TRANSMISSION ADAPTER KIT MAZWORX
