Not everyone can be good at all things. Take, for example, stereo systems. Just because you can build an 800hp motor, doesn't mean you can build a kick-butt system. Thank goodness the world today is full of great technology that you can have at the touch of a button. Just as you can buy a prebuilt crate motor, you can also get ready-to-go sub enclosures that perform much better than a couple pieces of plywood and some scews.
We got a good look at one such enclosure during a demo we received from MTX at the 2004 Consumer Electronics Show. The company had one of its prototype Sledgehammer boxes spliced into the stock system of a Scion, and it really hit. The boxes are truly impressive for a drop-in unit. All you have to do is give them enough wattage and then sit back and enjoy the massage. They come in a variety of sizes and power capabilities.We chose to focus on the 7500 series because it will fit in the back of just about all the extended-cab minis made.
MTX acoustic engineers designed the enclosure to optimize performance and efficiency. Each enclosure is constructed with 3/4-inch MDF for durability and features a unique slot port design that provides an oversized area, which moves large amounts of air with virtually no vent noise.
Moving all that air is the new 12-inch Thunder 7500 Superwoofer. Weighing in at more than 20 pounds, the T7500 is capable of handling 400 watts RMS and offers a variety of features, including a die-cast-aluminum frame, solid-steel pole piece, expanded poly-cone dust cap, rubber surround, tinsel leads mated to heavy-duty terminals, and Spider Plateau Venting technology.
To power the Sledgehammer enclosure, we needed a serious amp. Thankfully, MTX has those, too. MTX told us that the Thunder 801D would be the perfect amp to power the subs. The amp features MTX Audio's Adaptive Class D Technology, a 40-200Hz low-pass crossover, low- and high-level inputs, and a compression circuit to protect the 'woofers when the system is turned way up, and it's only 12x10 inches in size, so it will fit nicely under the seat.

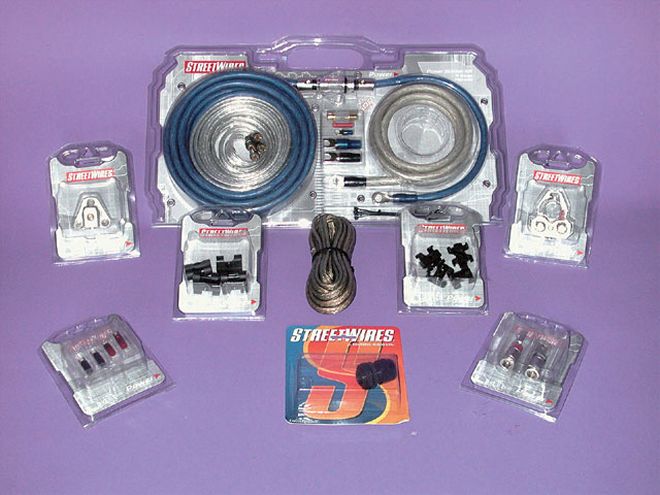

To bring juice to everything, we also picked up a StreetWires four-gauge amp install kit that gives us all the necessary wires, terminals, blocks, and even zip ties needed for the hookup. With all the instructions and wiring diagrams that come with the amp and wire kit, there should be no reason anyone couldn't accomplish this install - that is, if you have tools.
| mtx Monster Bass mobile Entertainment
Here is the Sledgehammer box from MTX. As you can see, this is no swap-meet box. These are made to produce serious bass - and they do. The slot port design is very efficient at moving air, and it cuts down on vent noise. They are covered in carpet and capped with a molded ABS plastic front fascia for a nice look.
| mtx Monster Bass sledgehammer
The amp needed to drive these speakers also has to have some oomph, so the Thunder 801D was sent with the order. This is a class D monoblock amp, and it's made to do one thing: power large speakers. The amp features high- and low-level inputs, so it's easy to tap into factory systems and a low-pass crossover, variable from 40 to 200 Hz, so you can tune it to your specific musical tastes.
| mtx Monster Bass mtx Audio
Inside this box is MTX's 12-inch Thunder 7500 Superwoofer. It's built with all kinds of confusing technology, so, for the non-techie, let's just say this sucker is pretty tough. For you real tech heads, check out the spec sheet on www.mtxaudio.com.
| mtx Monster Bass class D Amps
+Class D Amps 101We needed a little lesson on what Class D really means, so after talking with Rico Felice, one of the audio gurus at MTX, he turned us on to this information that's posted on the company's Web page. "Amplifiers that use Class D technology are switching amplifiers. These amplifiers feature MOSFET transistors that operate as a switch to manage the power applied to the speaker. This controlled switching creates a square wave known as Pulse-Width Modulation. High-frequency energy is generated from this square wave and is commonly concentrated at one point. Harmonics from this concentrated high-frequency energy travel into the radio-frequency range, and can cause interference with the radio's reception or through the audio system's ground, producing noise."
MTX cured this problem with its new Adaptive Class D Technology. With this approach, the amplifier's switching energy is constantly changing and is moved away from FM radio frequency ranges as the amplifier's load and output increases. This effectively eliminates the interference that is generated, thereby improving the amplifier's overall signal-to-noise ratio.
| mtx Monster Bass feeling Dim
+Feeling DimOnce an add-on system is installed in your truck, you might notice the headlights dimming when the subs go boom. This is generally caused by the heavy draw the amp and speakers put on the electrical system. There are two ways to remedy this: one is to buy a bigger alternator that puts out more amps; the other is to pick up one of these babies see here, aka a capacitor. It is basically a quick-discharge battery or, as others would call it, an electrical shock absorber. It keeps the power spikes from taxing the alternator by releasing stored power when needed.
