QuestionQUESTION: the blower direction flaps seem to be out of sink,do they have to be set if so what marks are there
ANSWER: what year van and what is happening?>
---------- FOLLOW-UP ----------
QUESTION: it was registered 2001
when we try to change blower direction the motor goes but it seems to be jammed and does not change flaps
Answer

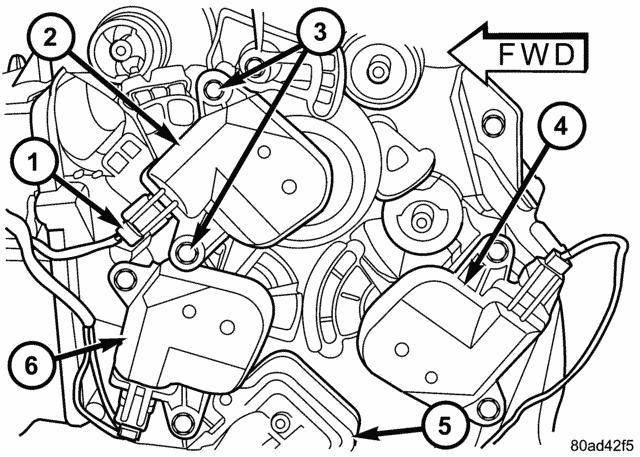

pic
here is the setup for the doors inspect and see if the mode door is changing the motor moving if not take it off and u can swap around the actuators with the others that will confirm if its a motor,or u have a wire issue or control head issue.
1 - CONNECTOR
2 - MODE DOOR ACTUATOR
3 - SCREW (2)
4 - DRIVER BLEND DOOR ACTUATOR (DUAL-ZONE ONLY)
5 - HEATER CORE
6 - BLEND DOOR ACTUATOR (SINGLE ZONE) OR PASSENGER BLEND DOOR ACTUATOR (DUAL-ZONE)
