American Motors: ignition, solenoid, amc


Question
i have a 74 amc matador 304, the problem is that when i crank over the car it will only run when its being cranked over, I've established that its a wire not giving power to the coil. i ran a wire form the coil to the solenoid and it'll start but it wont shut off when the key is off. thanks zach.

Answer
American Motors: ignition, solenoid, amc

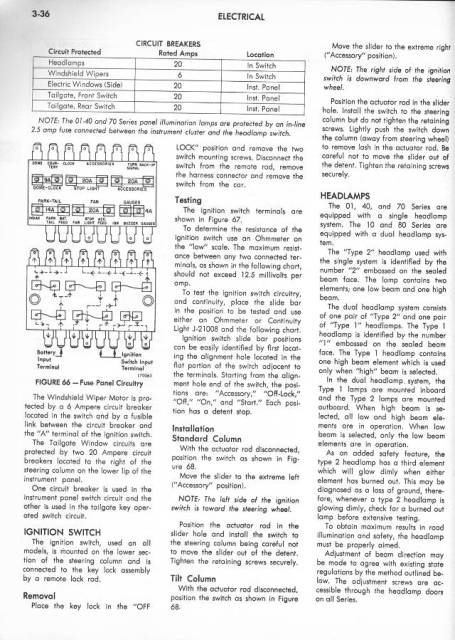

switch test page 1
I've attached a page from the repair manual, along with a link to the second page.
Follow the instructions for testing the ignition switch.
Let me know the results.
http://www.oldcarmanualproject.com/manuals/AMC/1973/Service/Part1/Chapter3html/b...
