Questioni had to hook a switch from the main fuse to the ignition fuse for this motorcycle to start i take the switch out all the lights still come on (the headlight tale light) but it will not start the motor turns over but it don't start the neutral light and the oil light will not come on but the gauge back lights do the head lights do tail light does come on but when i hook this toggle switch up to the main fuse and the ignition fuse it runs like a champ it starts and all but i take it out nutten happens what could cause this could it be the igniter box i don't know i got this bike and it was wired with this toggle switch and i want to get it like it should be with out the rigging jobs
Answer
KZ1100 Wiring
Hello Mike,

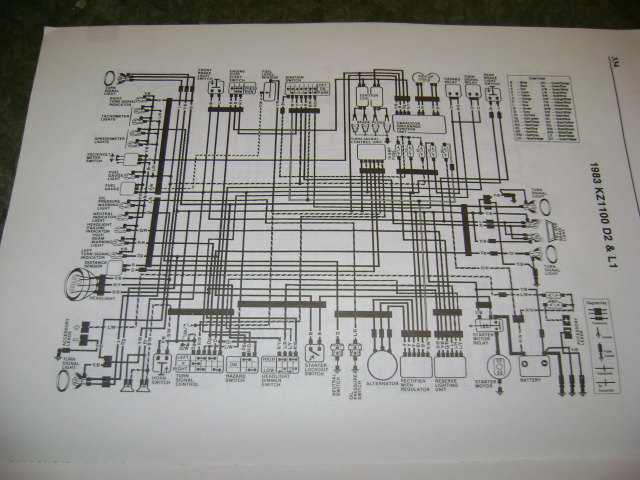

Try these wiring diagrams:
http://www.mediafire.com/?f848j995awj5dzh
http://www.mediafire.com/?caf2chejqvks3do
----------------------------------------------------
It is sounding like a bad wire or connection
in or behind the fuse box.
Three of your fuses get power from the black/white
wire so all of those should have power with
the key on.
It sounds like your main fuse is okay and
the other fuse is for the signals.
Your main fuse is working, try your
signals to check the other fuse
circuit and if that works
then you have to check the black/white
wire connection on the fuse box.
This is where the other fuses get power
so check the three and make sure
there is power to all three fuses that
use this black/white wire source.
There might be a broken wire near
the fuse box or the fuse holder
might be faulty.
Since all your other lights seem to function
it indicates the ignition switch is
probably working and the power break
is near the ignition fuse itself.
Let me know if you notice any other
odd things and maybe I can help
narrow it down.
Always check power on both sides of a fuse
to make sure the power is getting through.
By the way is your horn working?
If not, check your engine stop switch
wiring. Sometimes a bike can have more
than one problem that complicates matters
when trying to troubleshoot.
Good luck!
Wayne S.
------------------
