Small Engines (Lawn Mowers, etc.): Briggs Stratton swap, briggs stratton, log splitter

Question
QUESTION: Hi Ben, I have a log splitter with a BS 650, 124T0-0121 motor. I want to replace it with a BS 675 126L02-1015 (I hope these are the numbers you can use)
I read in another forum (while I was trying to determine whether the bolt pattern was the same or not) that one would have to change the flywheel etc. and governor
Since the BS 675 is new and comes from Amazon.com it isn't necessarily set up to run a log splitter.
Can you give me any advice on what I might have to do to swap these motors?
Thanks in advance
Stephen


123K02
126L02   ANSWER: Stephen
The replacement engine recommended by Briggs is a 126L02-1002.
MSRP: $331.00
Crankshaft: 694850
PTO (Extension): Tapped 3/8-24, 2 WK & Keyway, 7/8” dia
Dimension: 3-5/32(b)
Trim: ALL: Top No-Load Speed: 3600
This will be a exact replacement for the Engine you had before 124T0-0121B
Crankshaft: 694850
I hope you got all the numbers correct when you gave them to me.

We have in stock Engine that is a replacement it is a
123K02-0015
Quantum 6.5 HP Engine

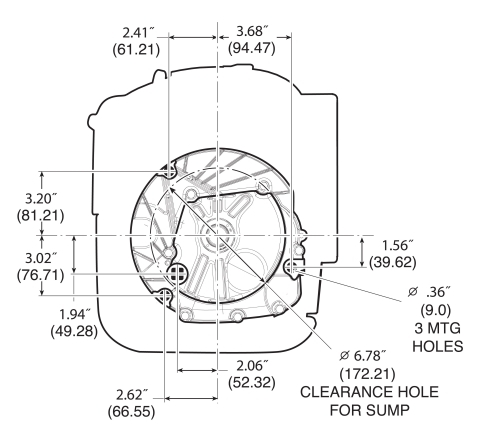

I have enclosed  both mounting diagrams for these engines.
You can have this engine for $100.00 plus shipping.
it lists for $170.00 it is overstock and we need to move it.
let me know


---------- FOLLOW-UP ----------

QUESTION: Ben, thanks for getting back to me. I am interested in your offer. Does the 123K02 have the same shaft dimensions?, and is it all set up, governor-wise to run our log splitter?
I rechecked the numbers, all good on my end.
How much to ship to Craryville NY 12521?

Answer
The crankshaft for this engine 123K02 is
Crankshaft: 691451
PTO (Extension): Tapped 3/8-24, 2 WK & Keyway, 7/8” dia.
Dimension: 3-5/32(b)
so it is the same dimensions.
All you would have to do is bolt his on the equipment what is the make of the log splitter and if you have a picture of it you can send it to me at

gb@gbelect.net

this way  with the equipment manufacture we can be exact, wouldn't want to have you return something.
Shipping weight is 35 lbs to your area 12521 UPS is a estimate for a weekday to a residential address if it is a commercial it would be cheaper,this includes our cost to get it ready to ship out.This is a new in the box unit.

UPS Ground
Thursday
December 1, 2011 shipped
By End of Day
Monday
Received December 5, 2011     29.75 USD *


Days In Transit: 2    Schedule by
10:00 A.M.
Thursday
December 1, 2011        Billable Weight:
35.0 lbs.
