Question
Howard,
I'm having the same problem as Wayne , and need a vacuum diagram for a '76 TR7.
Please help .
 Thanks ,  Rick

Answer

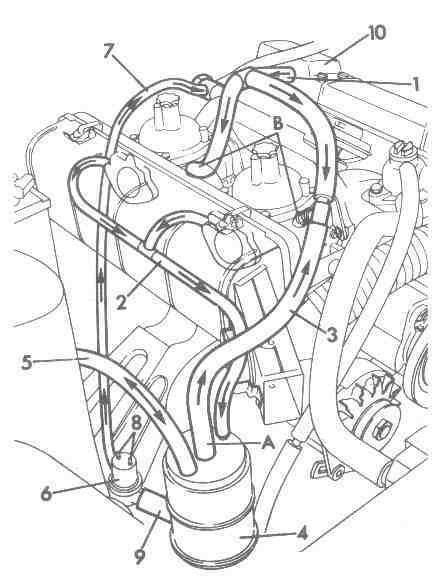

Hose1 diagram

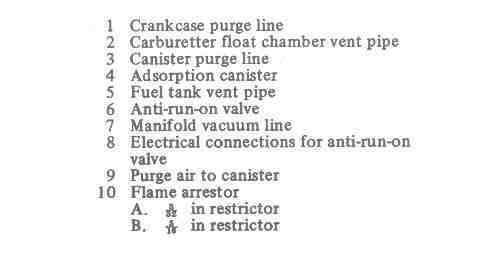

Hose 1 index   Hi Rick,

I don't have a complete diagram of the vacuum hoses but do have some of the sections. Enclosed are a couple of the hose sections. The picture labeled TR-7hose11x1 and 1a1x1 are one section with the index and another section is TR-7hose21x1.jpg (I will have to send this one in a second posting as they only have a space for two pictures. If there are other issues let me know and I will try to help. For example the 76 TR-7 came with a Opus/Lucas ignition system (large box mounted on the distributor) This system failed often so it is not likely you still have that system. Some people changed the distributor to get a different ignition system and others just cut the three wires and added a aftermarket system inside. While even others changed the upper part of the shaft and put in Lucas points and condenser for a pointed ignition system.

Either way you may have a different vacuum advance unit or a vacuum retard unit on the car now. Vacuum advance units use "Ported Vacuum" (taken off of the carburetor throttle plate edge.) while vacuum retard unites use straight intake manifold vacuum.

Howard
