1994 Chevy Silverado Suspension Installation - Getting A Lift

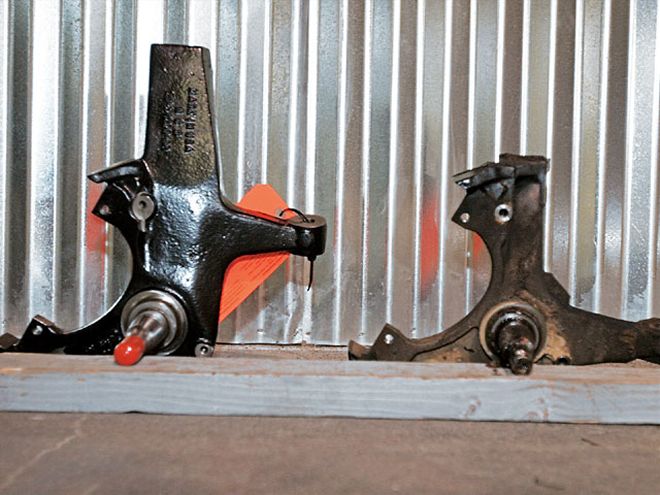

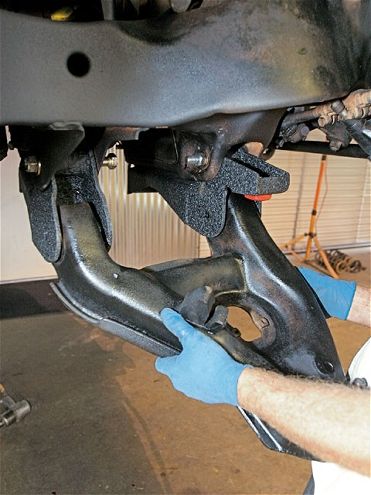

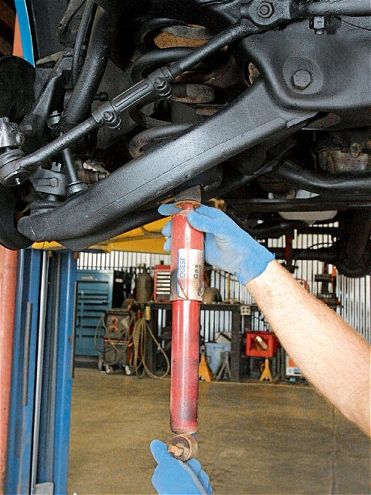

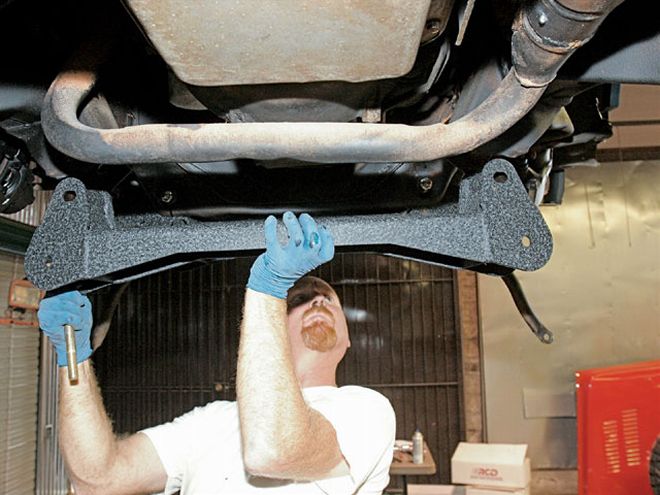

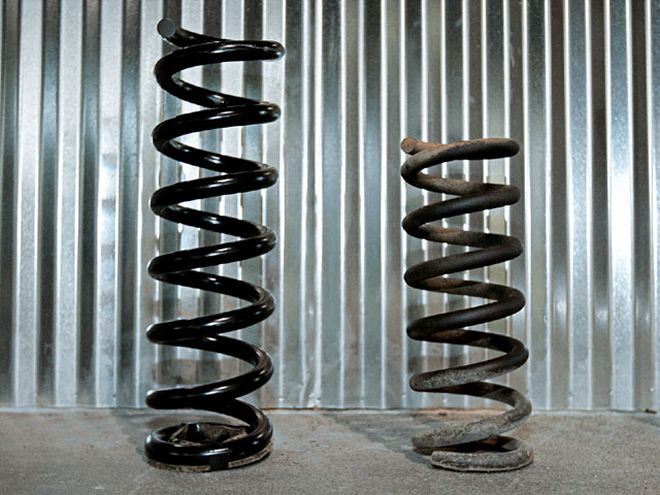

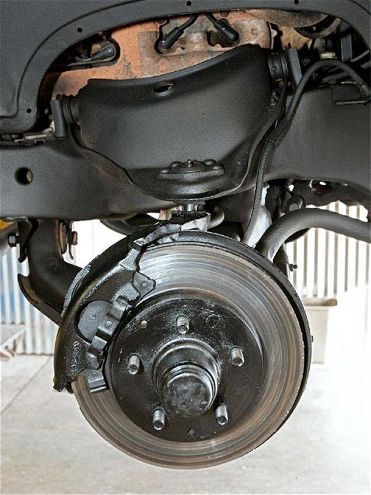

  |   1994 Chevy Sillverado on Lift When deciding to transform your daily on-road hauler into a multi-functional on- and off-road assault vehicle, your top priorities would be increasing the vehicle's ground clearance, suspension travel, and durability. To achieve an intimidating image, you would start off by installing an aftermarket lift kit and bolt on an aggressive off-road wheel/tire combo. We called up Jeff Yoder at RCD in El Cajon, California, to see about increasing the ride height of the front suspension of a 1994 Chevy Silverado. RCD uses a drop-cradle subframe, lifting the rockers 6 inches without replacing the factory upper and lower control arms. Also included in the kit are steering knuckles, shocks, and longer coil springs. The rear suspension is lifted with a simple 4-inch block inserted between the leaf spring pack and rear axle housing with a longer shock absorber. Larger-diameter wheels and tires will also contribute to the ride height increase. RCD (Race Car Dynamics), located in El Cajon, California, is one of the leading manufacturers of off-road suspension kits and components for light trucks and SUVs. We followed along as Nick DiCredico at Wicked Trucks and Rods, in Garden Grove, California, installed the RCD 6-inch lift.   |   1994 Chevy Silverado lift Kit Parts RCD's 6-inch lift kit includes: longer, stronger front coil spring replacements, Bilstein 5100 nitrogen-filled shock absorbers, front raised spindle and hub assembly, front and rear dropped subframe suspension pickup point brackets, shorter bumpstops, dropped subframe strut bars, urethane bushings, and brackets. Longer front sway bar end links and urethane bushings were also included. Rear axle housing/leaf spring 4-inch blocks with longer rear axle housing/leaf spring U-bolts, and washer/nut-fastening hardware.

•
•
•
•
•
•
