Banks Techni-Cooler Intercooler Install
For those of you who own one of the OBS (old-body-style) Ford F-250 Power Stroke diesels, you may or may not know that when you are towing, your EGT (exhaust gas temperature) tends to spike a little more than you’d like. One of the biggest reasons for that is because these trucks were not equipped with an intercooler. In today’s world of diesel-powered vehicles, it is not uncommon to see a truck equipped with an intercooler from the factory.
| This is a look at the engine before the install.
When Chevy, Dodge, and Ford started offering turbocharged diesels, they were fine. And the manufacturers did not need to do anything extra to help cool the motors. But in this day and age, turbodiesel trucks are not only your standard work truck, but they are also built for performance! For the next couple of months, you are going to follow along with us to see how you can make your very own OBS F-250 diesel a towing machine with performance parts from Banks Power. In this segment, you will see how Bill Cohron at Power Hungry Performance in Winder, Georgia, installs a Banks Techni-Cooler on our ’96 Ford F-250.
PHP shows you how this kit is a complete bolt-on kit, with no welding and very little in the way of modifications. It only took Bill three hours for the install using basic tools. If you own one of these trucks and you tow a lot or plan on installing some performance stuff, make sure to check out bankspower.com for your performance needs. And if you’re near Winder, Georgia, hit up Bill Cohron at: powerhungryperformance.com or bill@php.com

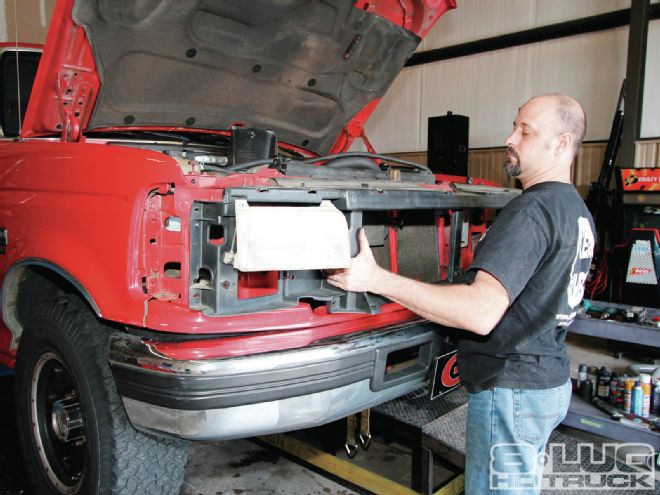

| 01. To begin the disassembly, Bill Cohron removed the front grille.
Once the install was complete and a few test runs had been conducted, there was a 100 to 150 degree drop in EGT. This is especially good to know if you tow a lot of heavy equipment and/or run Stage 1 or larger injectors. Knowing the truck is running cooler always makes it a little less stressful going on those long trips.
