Chevy 383ci - Stroke It!

  |   This is what it takes to build a Chevy 383ci "stroker." Some assembly is required. When Chevrolet introduced its 350ci 5.7L engine in some of the '67 Camaros, it forever changed the automotive world. The popular small-block 350ci is one of the most easily recognizable and enhanced engines of all time. A popular engine-enhancement procedure for the Chevy 350ci is to stroke it. To do so, we needed to increase the cubic inches of the production 350ci block to 383ci. You cannot bore a 350ci block out to make it displace 383 ci. The only way to make a 383 Chevy small-block engine is to use a new 400ci crankshaft. A 400ci crankshaft has a longer rotating stroke, thus producing more cylinder displacement. The most you can bore out of a 350ci block is a .060-inch-diameter increase per cylinder, which would give you a final displacement of 360 ci. A stock 350ci engine has a crank stroke of 3.48-inches. By using a 400ci engine crankshaft with a longer 3.75-inch stroke, it will increase the piston travel in the cylinder, thereby increasing the cylinder displacement by 4.12 ci. This also increases the engine's overall air/fuel mixture displacement by 33 ci, which makes 383 ci. Increasing the cylinder displacement will greatly increase both the torque and horsepower.   |   chevy 383ci Stroker engin Tuning Danny Grill and Matt Leedy of M&R Engines in Glendale, California, have gained the reputation of building potent and reliable Mouse (small-block) "stroker" engines for the street, strip, or water. With camera in hand we followed along as Matt assembled one of the most popular engine combos, M&R's Chevrolet HP383 "stroker." These fully assembled crate engines are dyno rated at 480 hp at 5,600 rpm and 450 ft-lb of torque at 4,000 rpm!

•
•
•

•
•
•
•
•
•

•
•
•
•
•
•

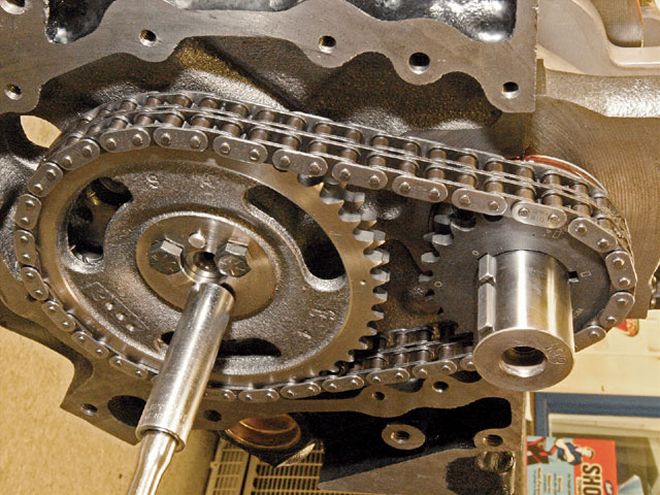

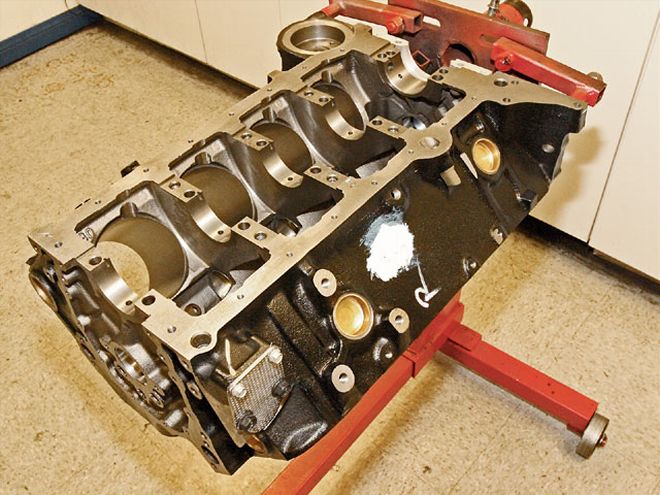

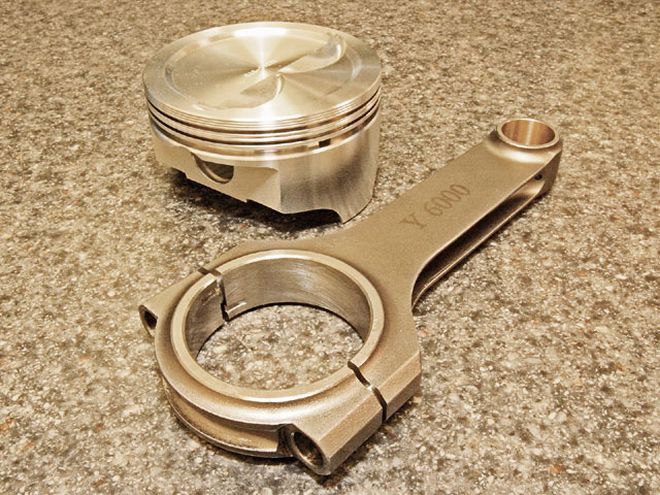

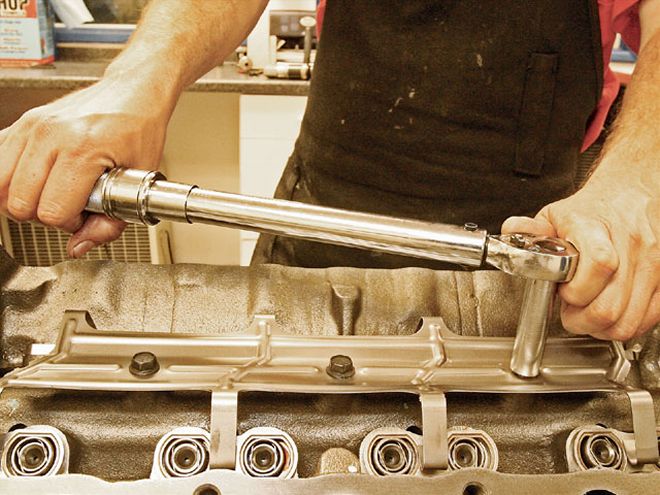

YOUR QUESTIONS ANSWERED: Amount of Difficulty: Advanced Amount of Time To Build: 4 hours Total Cost: $5,495 PARTS LIST: MANUFACTURER PN DESCRIPTION General Motors 10105123 New SBC Cylinder Block Late Roller RPM DG5-185D60 383 Steel 6.000" 2 pc. Connecting Rod {{{Probe}}} 12345-STD Forged Piston Probe SRS 12 cc Dish RPM LG3-6000H H-Beam 4340 Rod Set SBC 6.000 Childs & Albert 9902-std 4.000 1/16, 1/16, and 3/16 piston rings RSC350E Comp Cams 08-433-8 XE288HR HYD Roller Camshaft Comp Cams 08-1145 3 pc. Roller Timing Set Roller Cam SBC General Motors 2148 Roller Lifter Set SBC General Motors 12550002 Roller Lifter Guide General Motors 14101116 Roller Lifter Retainer {{{Spider}}} General Motors 10168501 Roller Cam Retainer Plate FKC1A Roller Hardware Kit Professional Prof. 80010 6-inch SBC Lightweight Damper Melling M55 SBC Oil Pump Melling 55-S1 SBC Oil Pump {{{Pickup}}} Melling 1S55-E HD Oil Pump Drive Shaft Victor 16635 Oil Pan Gasket Pro Comp 3002S 190cc Alum. Cyl. Head 64cc Chamber Pro Comp 3561 Steel Spring Seat Set Comp Cams P11539JF Stainless Exhaust Valve Comp Cams P11826JF Stainless Intake Valve Iskenderian Cams NA Dual Valve Spring Ass. 1.750 Hyd Roller Iskenderian Cams NA 11/32 Hardened spring Keeper PRK 651 3/8-inch Rocker StudGP200 SBC NA Flat Guide Plate 5/16 SBC NA Alum. Water Pump (short) Dana GLS350 Gull Gasket Set SBC NA Head Bolt KitKS303-3 Manley NA 7.{{{300}}} 5/16 4130 Push Rods Pro Comp PC2326 Roller Rocker Arms 1.5 X 3/8 3321 Alum. Timing Cover {{{M}}}&R WA6033 Polished Alum. Valve Cover Angle Top Profession Products 52031 SBC Hurricane Single Plane Int Manifold Champ CP60RB 7-quart. Deep Sump Oil Pan w/ Baffels Pro Comp {{{600}}}-1 Perf. HEI Distributor Holley 0-82750 4150 HPBody 750cfm
