Project Dark Horse, Part 5 - Big Brake Install
• Part 1 - Exhaust & Header Install
• Part 2 - Supercharger Install
• Part 3 - Lowering Kit Install
• Part 4 - Wheel & Tire Install
• Part 5 - Big Brake Install
• Part 6 - Electric Fan Install
| 0604st Ford F150 Performance Brake Install 01 Z

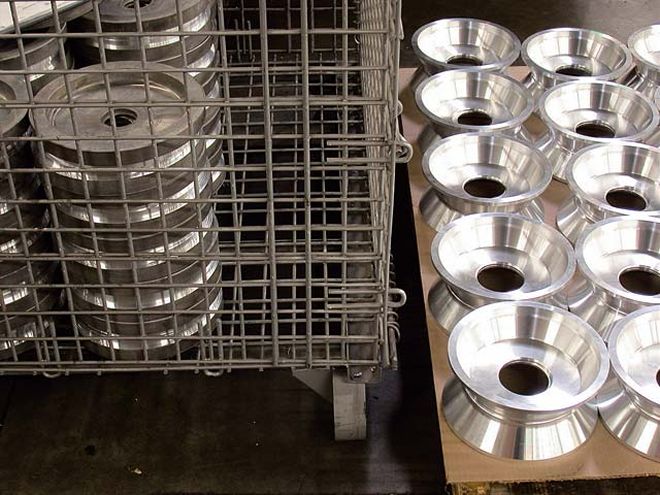

This month on the Dark Horse, we are going to be upgrading the stock braking system, thanks to Wilwood's new TC 6 Big Brake kit. Designed to work with the factory master cylinder and ABS system, this kit requires no cutting or welding for a true bolt-on installation. The Forged TC six-piston calipers, Wilwood brake pads, machined aluminum hats, and 16-inch GT directional vane rotors represent today's styling and provide the ultimate in stopping power.

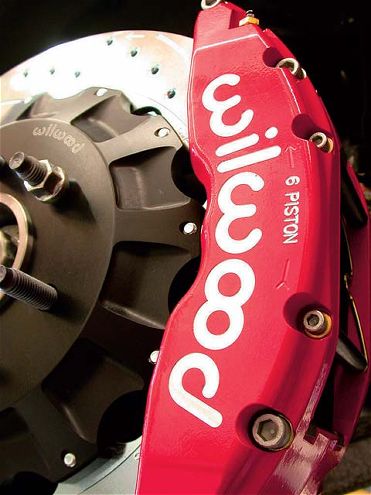

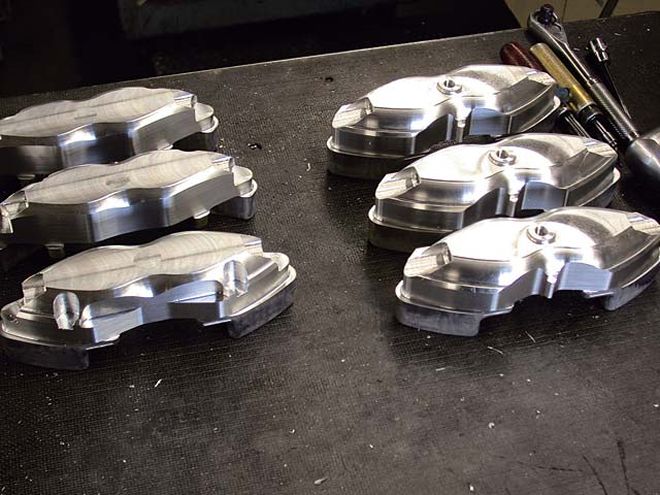

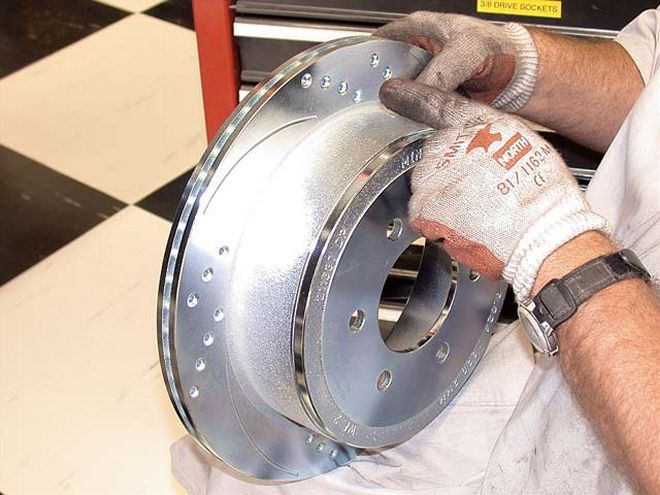

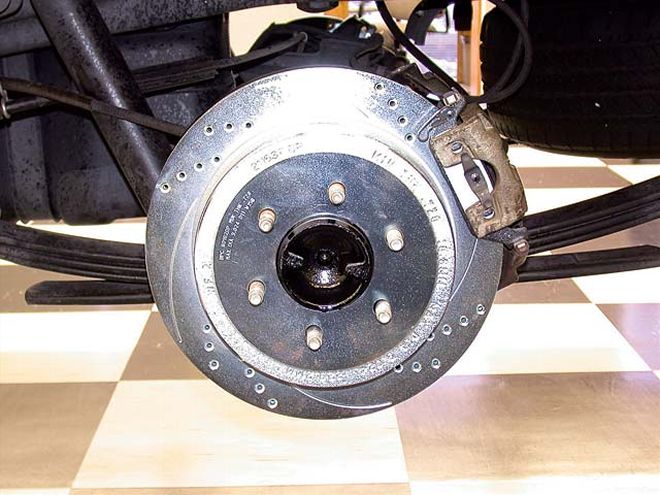

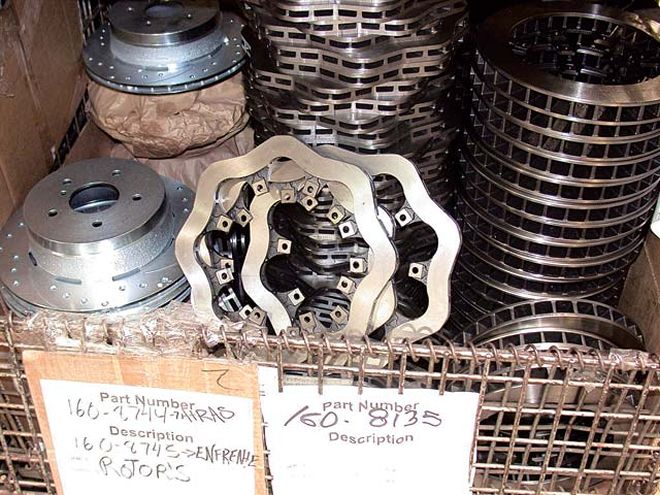

Born from Wilwood's 25-year tradition of building brake systems, TC Big Brake kits are the perfect complement to wheel, tire, and suspension equipment upgrades. The forged billet TC six-piston calipers are available in black or red and feature six stainless steel pistons to generate high-clamping force and balanced pad loading, while resisting corrosion and reducing heat transfer to the fluid. Talk about big-this kit comes with 16-inch staggered vane directional rotors, which offer great cooling efficiency by maximizing the surface area and air circulation between the rotor faces. The rotors are drilled and slotted, then finished in a silver zinc wash to enhance pad performance and give that high-tech, corrosion-resistant look behind the wheels.
After all of this stuff was installed on the truck, we took Dark Horse out and did some hardcore stops. Not only did we shave about 6 feet off of our stopping distance, there was no noticeable brake fade, which could mean the difference between a close call and a call to the insurance company.
