Many of us are envious of the JK for the availability of an in-dash GPS unit. An in-dash unit is way less likely to get stolen and just plain looks cleaner. We recently found a way to get all of the benefits of an in-dash unit for none of the price or platform penalties.

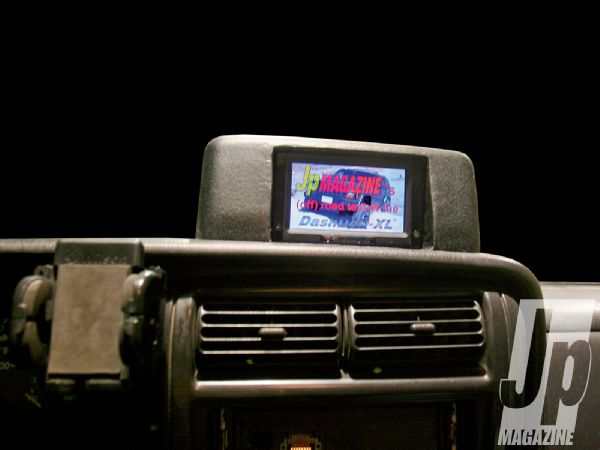

154 1009 In Dash Gps dashdaq Gps Installed Photo 34325535

If you have a plastic dashboard or dash pad, by using a dash pod from Kilby Enterprises and a product called Q-bond you can take any GPS unit and make it look like a factory-offered option. All it takes is a bit of time, less than $100, and your suction-cup mounted albatross will disappear forever.

It's a really easy project to pull off, but it will take time to make it look good. From waiting for glue to dry, to sanding joints flush, to the application of a textured paint and bedliner-this isn't going to be a one-day project. We tried using Rustoleum Hammered paint to make the new plastic match the dash texture, but ended up settling on some spray-on bedliner for a closer match of both luster and textured finish.

PhotosView Slideshow The basis of the magic is simply a dash pod intended for a TJ from Kilby Enterprises and some strips of plastic cut from a Rubbermaid trash can that we keep on hand for these kinds of projects. We sized the cut-up trash can pieces to fit our DashDAQ GPS by tracing the outline of it with a Sharpie marker. Q-bond includes a gray powder, a black powder, and two bottles of "specially formulated" super glue. The glue smells just like every other super glue, but it actually kicks up a bit of smoke when combined with the powder. If you sand beforehand, it creates a perfect bond on all kinds of plastics. The company claims it's good for plastic radiator tanks, but we didn't test that. However, it works great for holding a GPS to a plastic pod. Some sanding will be required for a uniform finish. Make sure to cut the hole(s) you need before Q-bonding your new plastic box into the Kilby pod. For our DashDAQ unit, we needed three separate holes. There are a couple of downsides to this clean installation: The speaker volume on many units will be compromised and if you need access to the memory card, you will need to take the dash partially apart to get to it. We don't use verbal directions on this GPS, and we don't ever need to get to the memory card, so both are non-issues for us.
