New Pans for Your Power Stroke Oil Problems
Have you experienced some of the continuous oil temperature problems many 6.0L and 6.4L Power Stroke owners face? River City Diesel has come up with a custom-fabricated, aluminum oil pan that offers six times the thermal conductivity of the factory, laminated steel piece. For your engine, this means lower engine oil and coolant temperatures, longer oil life, quicker hot starts, less fan clutch duty cycle, and better fuel economy. All pans are TIG-welded internally and externally, pressure tested, and are a direct, bolt-on replacement to address your Power Stroke oil problems.
River City Diesel
(309) 699-2488 • www.rivercitydiesel.com
| march 2012 Power Products power Stroke Oil Pan
Durable 6.0L HPOP
DieselSite has increased its high-pressure oil pump line with the addition of a billet-housing pump for ’03 to ’04 6.0L Power Strokes. Available in stock or high-volume versions, each unit is built with heavy-duty parts designed to add longevity and reliability to avoid becoming a source for any Power Stroke oil problems. Best of all, adding the pump to your Power Stroke requires no special engine calibrating. For utmost durability, each unit incorporates a dual ball-bearing cartridge with a larger swash plate and a longer stroke, which is said to retain safe, reliable pump operation.
DieselSite
(888) 414-3457 • www.dieselsite.com
| march 2012 Power Products dieselsite Oil Pump
6.4L Oil Solutions

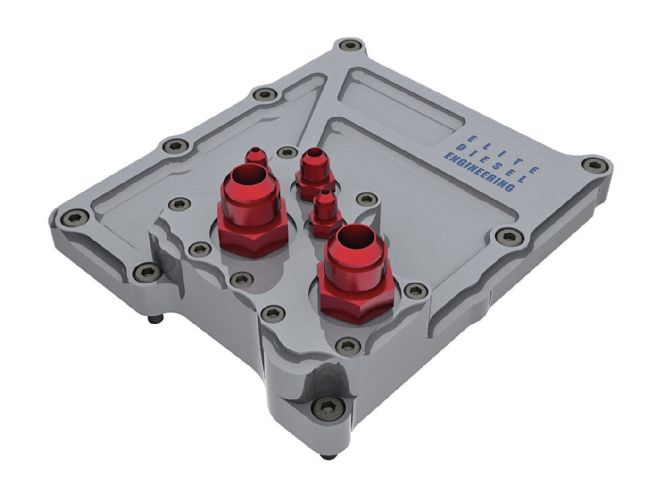

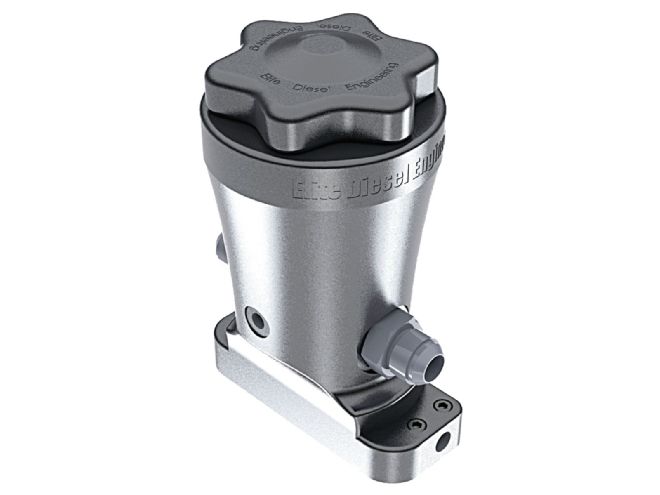

Always at the forefront of Power Stroke innovation, Elite Diesel is now offering an oil cooler bypass kit, as well as a new crankcase ventilation (CCV) system for ’08 to ’10 6.4L owners. Its aluminum oil cooler mounts at the front of the truck and does away with the factory oil bowl in the lifter valley. The oil cooler bypass kit utilizes -12 AN oil lines and fittings. Elite’s CCV kits will come with an aluminum cartridge, -16 AN fittings, and keep crankcase oil and vapor from accumulating in the intake tract.
Elite Diesel
(866) 560-6471 • www.elitedieseleng.com
ReVamped Twin CP3 Kits
ATS has refined its twin CP3 systems for common-rail Dodge Rams and fixed four problems in the process. First, a new idler bracket is supplied to increase serpentine belt tension with the billet CP3 pulley, which is ideal for high engine loads, rpm, and big horsepower scenarios. Second, the increased tension solves the screech often heard when you shut down your engine. Third, the new idler pulley routes the belt away from the power steering reservoir (and avoids contact with the cylindrical reservoir found on newer trucks). And finally, the new bracket replaces the original support pump bracket that was prone to cracking.
ATS Diesel
(866) 490-5573 • www.atsdiesel.com
| march 2012 Power Products ats Diesel Twin Cp3 Kit
5.9L Common-Rail Turbo
Running a small set of injector nozzles or a hot programmer? Advanced Flow Engineering may have the perfect bolt-on turbo for you. Its new BladeRunner turbocharger features a 58mm compressor wheel inducer and a ported shroud housing to optimize flow and eliminate surging. Wastegate operation is controlled by a black anodized wastegate actuator, and the center cartridge is outfitted with 360- degree thrust bearings and journal bearings for long-life durability. According to AFE, the BladeRunner can add as much as 100 hp and provide a 150-degree drop (or more) in EGT.
Advanced Flow Engineering
(888) 901-7693 • www.afepower.com
| march 2012 Power Products advanced Flow Engineering Turbo
Digital Torque Adapters
Now you can convert any 3⁄8-inch or ½-inch ratchet into a precision torque wrench, thanks to Eastwood’s digital torque adapters. Its adapters are simply placed between a standard ratchet and socket (or socket extension) and offer accuracy that equals or exceeds that of many digital torque wrenches currently on the market. For those working on modern vehicles that require torquing to a set value followed by measuring rotational angle, Eastwood also offers two adapters that measure angle. All adapters measure torque from 15 to 150 ft-lb and are accurate to within 1 percent, clockwise and counterclockwise.
Eastwood
(800) 343-9353 • www.eastwood.com
| march 2012 Power Products digital Torque Adapter
Thanks for reading this month's Power Products. We like to share with you the latest diesel parts and upgrades available on the market that we think are worthwhile. Company's new product lines and applications like for instance River City Diesel and DieselSite's Power Stroke oil problems solvers and AFE's new common-rail turbo are what we tend to cover, as well as other products that aren't necessarily new but that we are familiar with and like.
Have a favorite product you'd like to share with the Diesel Power community? Let us know and we'll see if we've mentioned it yet. Shoot a message over to Mike on his page.
