Air Intake Install On 1997 Dodge Truck V8 - Four Wheeler Magazine

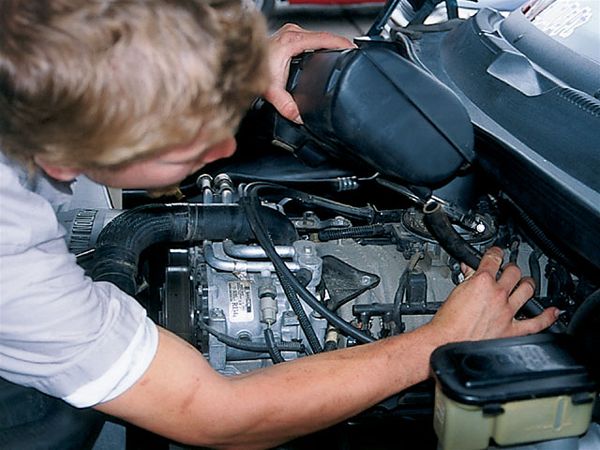

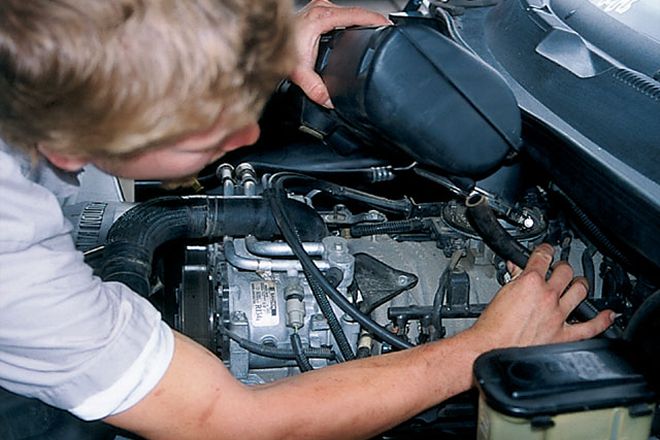

Air Intake Install On 1997 Dodge Truck V8 - Nine Great Parts You Can Install Now Ken Brubaker Senior Editor, Four Wheeler air Intake System remove Air Cleaner Housing Photo 29381505 1. Unplug the breather hose and remove the original air-cleaner housing and snorkel. Remember to disconnect the negative battery cable before you begin.

Installing a new air intake system under your hood is a simple, quick way to improve your vehicle's performance. The purpose of an air intake kit is to reduce intake restriction while at the same time straightening and smoothing airflow to the engine's cylinders. This allows your vehicle to inhale more air, which translates into more usable power across the engine's rpm range. Another result of such a kit is improved throttle response and improved fuel efficiency.

The bolt-on installation is relatively straightforward and can be done with common handtools. This type of power boost requires no cutting, drilling or fabricating, so it can be done by anyone with basic mechanical knowledge. We spent about 90 minutes at Stanley's Exhaust Tech in San Clemente, California, where Stanley's knowledgeable staff installed a CGS Motorsports air intake, provided by Performance Combos, onto a '97 Dodge pickup with a 5.2L V-8. CGS claims a 15-20 hp gain on a V-8 engine.

PhotosView Slideshow 2. We installed the throttle-body spacer at this point. It is a simple, direct install using two provided gaskets. Then we screwed in the provided "S" bolt 1/2 inch into the throttle body and bolted on the new air housing. 3. Insert the supplied grommet into the intake tube. Then apply the metal insert into the grommet. Attach the intermediate hose to the air housing and tighten the bracket. 4. Insert the intake tube into the intermediate hose and connect the vehicle's breather hose to the metal insert on the tube. Tighten. 5. Then fit the air cleaner onto the end, making sure to slide the provided mounting bracket under the attaching belt. 6. Use provided sheetmetal screws to bolt in the bracket. We bolted ours to the wheelwell. Tighten the bolts and all other tubing and brackets. Reconnect your battery and breathe easy!
