They say variety is the spice of life, and that certainly holds true for Chevy truck owners. As difficult as it is to believe, the vast majority of trucks purchased remain bone stock. Modifications to these stockers tend to be more of the tree-shaped, air freshener variety than some performance enhancement underhood. Many owners don't even know where to find the hood latch, let alone what to modify once they successfully locate the engine bay. Truckin readers tend to populate the other end of the performance spectrum, a position unencumbered by pine-scented floral fixtures. Despite sharing a desire for performance, variety is still the order of the day. For some, it's a simple cam swap combined with an air intake and cat-back exhaust, while others go whole hog and opt for a maximum-effort, all-motor stroker. Recognizing (and applauding) this diversity, we decided to offer up a little variety of our own—Truckin style. When all was said and done, we tested no less than five different 5.3L combinations, including the stock motor, ranging from mild to wild. Check them out and decide which one is right for your Chevy truck.
| Whether you are looking to go mild or wild on your 5.3-liter, it’s all about having the right combination of parts.
Test Motor #1-Stock LM7 5.3-Liter
Block: Stock
Crank: Stock
Rods: Stock
Pistons: Stock
Cam: Stock
Heads: Stock
Intake: Stock
TB: Accufab 78 mm
Headers: QTP 1¾-inch long-tube
Peak Power: 363 hp at 5,300 rpm
Peak Torque: 385 lb-ft at 4,400 rpm
Torque Curve: Exceeded 360 lb-ft of torque from 3,700-5,200 rpm
| 1. Plucked from a wrecking yard, this high-mileage 5.3-liter would serve as our baseline for our future modifications.

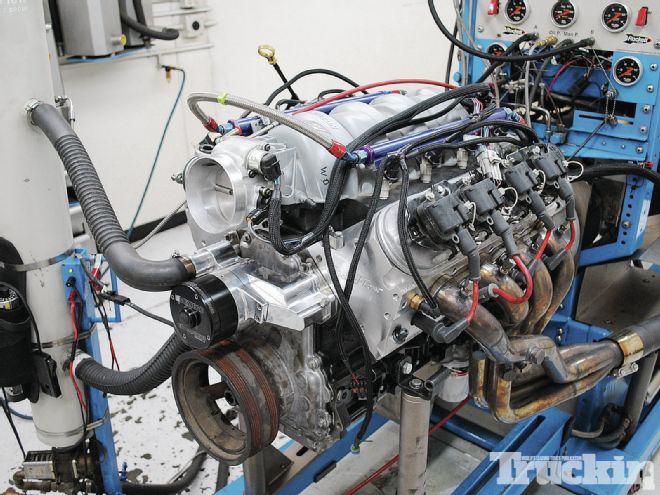

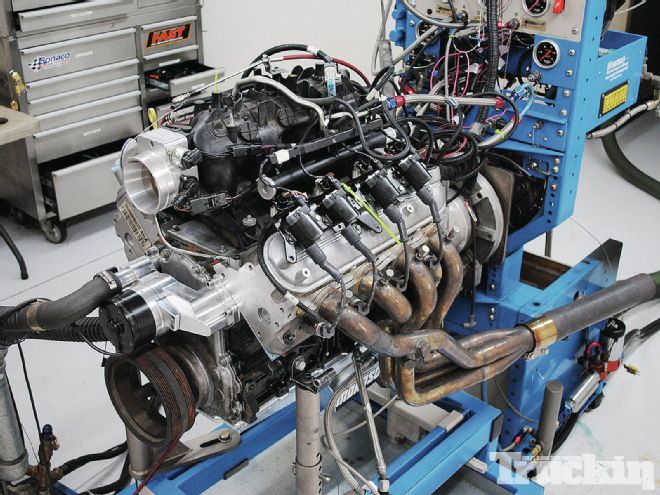

Before running any of the modified combinations on the engine dyno, we needed power numbers on a stock motor. The 160.000-mile 5.3-liter was installed on the engine dyno and run with a FAST XFI/XIM management system. The LM7 was run with a set of QTP headers, a manual Accufab throttle body (our wrecking yard motor was not supplied with a stock throttle body) and a Meziere electric water pump. In otherwise stock trim, the 5.3-liter produced 356 hp at 5,400 rpm and 378 lb-ft of torque at 4,300 rpm. Tuned for towing, torque production exceeded 360 lb-ft from 3,700 rpm to 5,100 rpm. Even down at 2,500 rpm, the little 5.3-liter pumped out 345 lb-ft. Is it any wonder the affordable and powerful 5.3-liter is fast becoming the swap engine of choice?
| 4. The stock 5.3-liter produced 356 hp and 378 lb-ft of torque.

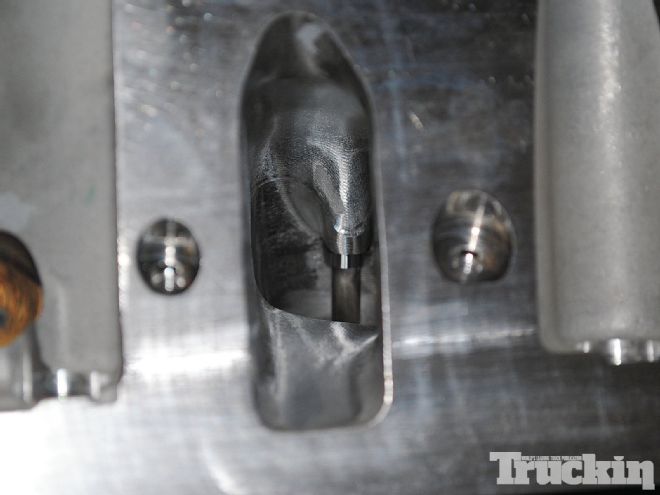

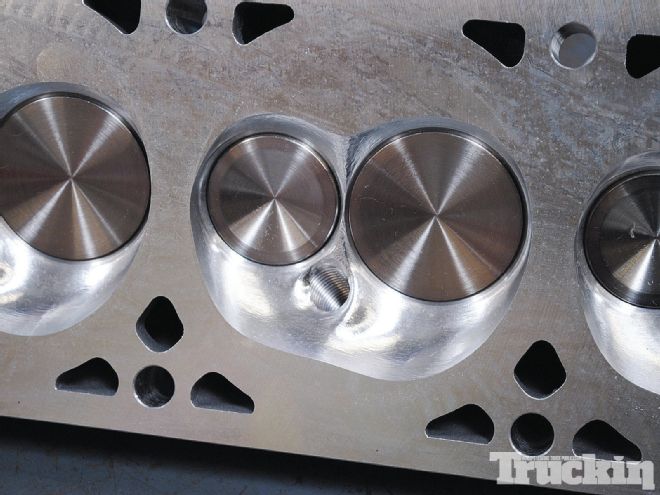

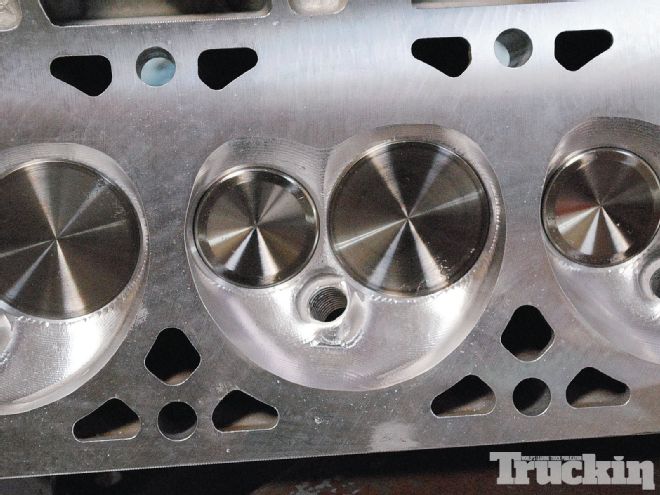

| 5. The first modification to our mild 5.3-liter was a set of CNC-ported stock heads from Total Engine Airflow.
Test Motor #2-Mild LM7 5.3-Liter
Block: Stock
Crank: Stock
Rods: Stock
Pistons: Stock
Cam: Trick Flow Specialties .575 lift, 220/224 duration split, 112-degree LSA
Heads: TEA Stage 1 CNC 5.3-liter
Intake: Stock
TB: Accufab 78 mm
Headers: QTP 1¾-inch long-tube
Peak Power: 436 hp at 6,200 rpm
Peak Torque: 410 lb-ft at 5,100 rpm
Torque Curve: Exceeded 375 lb-ft of torque from 3,800-6,100 rpm

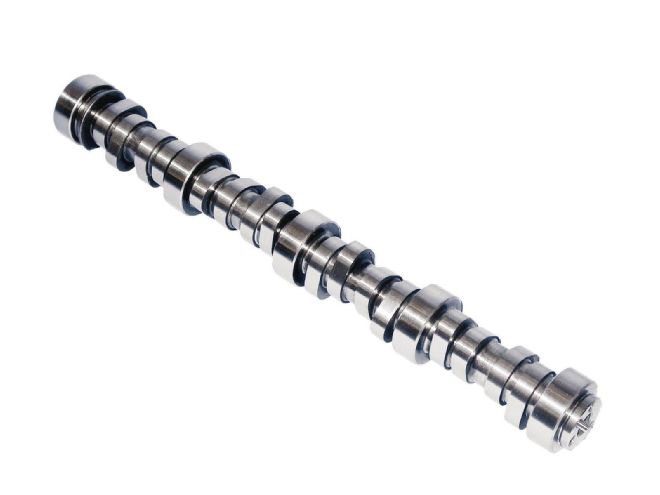

For those looking to enhance the power output of their 5.3-liter without sacrificing throttle response and low-speed torque, this 5.3-liter is ideal. Using the stock short-block, we upgraded the heads and cam to dramatically improve the midrange and top end power without the usual trade off in low-speed torque. In fact, this combination improved the power output of the 5.3-liter from 2,500 rpm right through 6,500 rpm. The TrackMax cam from Trick Flow Specialties offered an excellent combination of power and idle quality. The combination of the ported 5.3L heads from Total Engine Airflow and mild TrackMax cam increased the power output of the 5.3-liter from 356 hp and 378 lb-ft of torque to 436 hp and 410 lb-ft of torque. You will want to reprogram the full-throttle shift points in your tranny to take advantage of the extra power at the top of the rev range.
| 9. Better still, the upgrades lost no power to the stock components even down as low as 2,500 rpm.

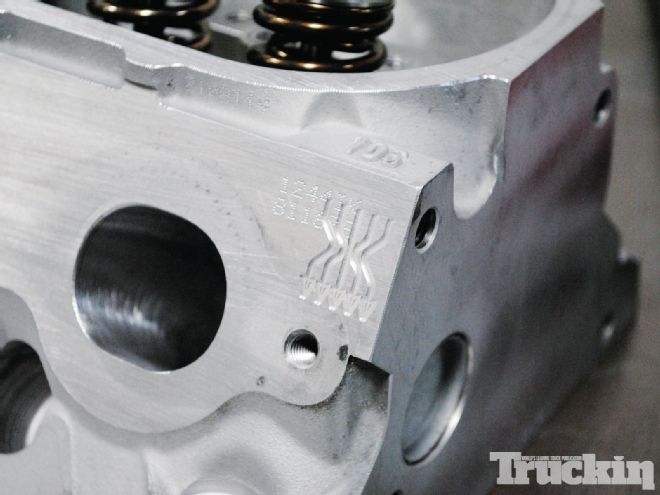

| 10. This combination received a set of GenX 205 heads from Trick Flow Specialties. The GenX 205 heads were designed specifically for the small-bore 4.8L/5.3L motors.
Test Motor #3-Wild LM7 5.3-Liter
Block: Stock
Crank: Stock
Rods: Stock
Pistons: Stock 4.8-liter (flat-top)
Cam: COMP XR281HR .571/.573 lift, 228/230 duration split, 112 LSA
Heads: TFS GenX 205
Intake: FAST LSXR
TB: FAST 102 mm
Headers: QTP 1¾-inch long-yube
Peak Power: 501 hp at 6,500 rpm
Peak Torque: 452 lb-ft at 5,400 rpm
Torque Curve: Exceeded 425 lb-ft of torque from 4,200-6,100 rpm

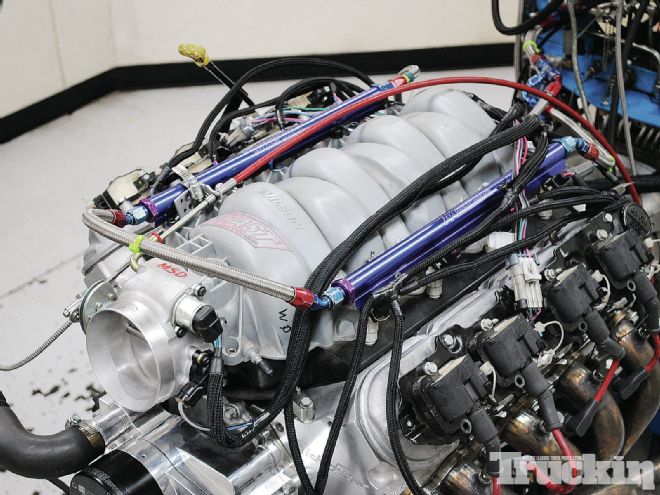

This wild combination was designed to cater to the needs of the adventurous few who are looking to maximize the power output of their 5.3-liter. The stock 5.3L short-block was retained, but with one small change. The stock dished pistons were replaced with flat-top versions from the 4.8-liter. It is also possible to utilize an L33 HO version of the 5.3L factory equipped with flat-top pistons. The flat-tops were combined with a set of TFS GenX 205 heads designed specifically for the small-bore 4.8L/5.3L motors. The GenX heads offered tremendous flow while retaining the small combustion chamber to optimize the static compression ratio. The heads worked in conjunction with a COMP XR281HR cam and FAST LSXR intake. Run with lightweight Lucas synthetic oil, we managed to fine-tune this 5.3-liter up to 501 hp and 452 lb-ft of torque. Make no mistake, this motor was happiest higher in the rev range, but we were surprised by the torque production. Though we expected the combination of added head flow, cam timing, and runner volume in the LSXR intake to at least trade off low-speed torque, this combination offered more power and torque from 3,000 rpm to 7,000 rpm.
| 14. It is important to note that peak power occurred at 6,500 rpm, 1,100 higher than the stock motor.
| 15. If you are looking to enhance both horsepower and torque, then look no further than cubic inches. The mild 383 offered just that with a forged stroker crank and rods from Procomp Electronics.
Test Motor #4-Mild 383 Stroker
Block: Stock (Bored to 3.902)
Crank: 4340 forged 4.0-inch stroker-Procomp Electronics
Rods: 4340 6.2-inch, Procomp Electronics
Pistons: 21cc dish forged piston, Probe Industries (3.902 bore)

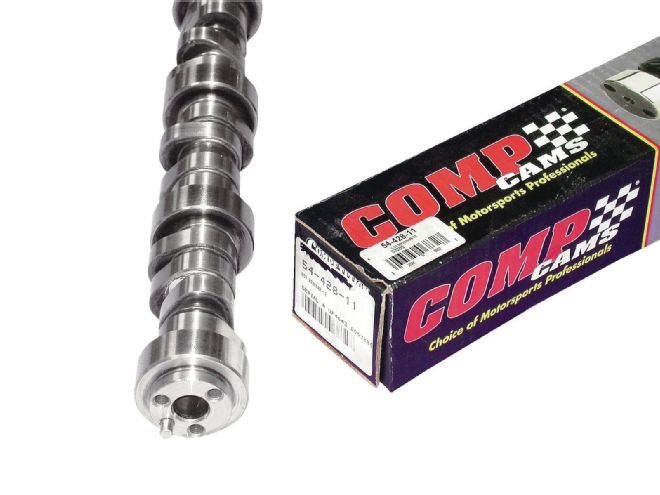

Cam: COMP XR275HR .566/.568 lift split, 222/224 duration split, 112 LSA
Heads: TEA Stage 1 CNC 5.3L
Intake: Stock
TB: Accufab 78 mm
Headers: QTP 1¾-inch long-tube
Peak Power: 506 hp at 5,700 rpm
Peak Torque: 503 lb-ft at 4,700 rpm
Torque Curve: Exceeded 475 lb-ft of torque from 3,800-5,500 rpm
Though the 5.3L LM7 offers plenty of power in modified form, the torque production is ultimately limited by the displacement. The cure for this limitation is as simple as adding inches, in this case jumping from 324 ci to a full 383 ci. The increased displacement will improve not only peak power, but more importantly, average torque production. Basically the bigger motor can make more power everywhere. The additional displacement allows you to equal the power output of the wild 5.3-liter with a much milder combination. The benefit of going the stroker route is improved fuel mileage (over the wild-cammed 5.3-liter) and monster torque curve. The 5.3L block was bored to accept 3.902 forged pistons from Probe Racing, and then combined with a 4.0-inch stroker crank and 6.2-inch rods from Procomp Electronics. The stroker short-block was topped with the same TEA-ported 5.3L heads used on the mild 5.3-liter. Wanting a daily driver, we chose a mild COMP XR275HR cam. The combination offered plenty of power, peaking at 506 hp at 5,700 rpm and 503 lb-ft of torque at 4,700 rpm. Torque production was up by 100 lb-ft over the stock 5.3-liter at 3,000 rpm and by 90 lb-ft at 3,500 rpm.
| 19. Equipped with the stock truck intake and Accufab throttle body, the mild 383 produced 506 hp and 503 lb-ft of torque.
| 20. Though it produced nearly the same peak power as the wild 5.3-liter, the mild 383 improved torque production by almost 100 lb-ft at 3,000 rpm.
| 21. The final (wild) 383 combination also featured a 4340 forged rotating assembly from Procomp Electronics.
Test Motor #5-Wild 383 Stroker
Block: Stock (bored to 3.9020)
Crank: 4340 forged 4.0-inch stroker, Procomp Electronics
Rods: 4340 6.2-inch, Procomp Electronics
Pistons: Flat-top forged piston, Probe Industries (3.902 bore)
Cam: COMP 289LR HR14 .624. lift, 239/242 duration split, 114 LSA
Heads: TEA Stage 2.5 LS6 (1.72 roller rockers)
Intake: LSXRT
TB: FAST 102 mm
Headers: American Racing Headers 17⁄8-inch long-tube
Peak Power: 603 hp at 6,400 rpm
Peak Torque: 544 lb-ft at 5,400 rpm
Torque Curve: Exceeded 525 lb-ft of torque from 4,400-5,900 rpm

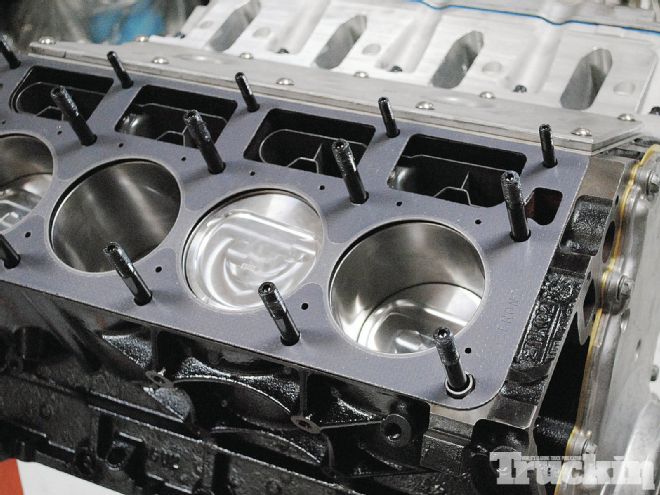

| 22. The wild 383 featured flat-top pistons to push the static compression up near 11.0:1. Each point of compression is worth 3-4 percent in power and those power gains come through the entire rev range.

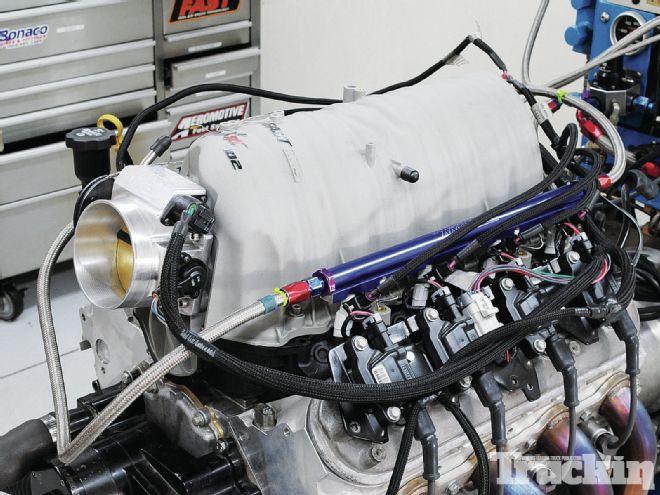

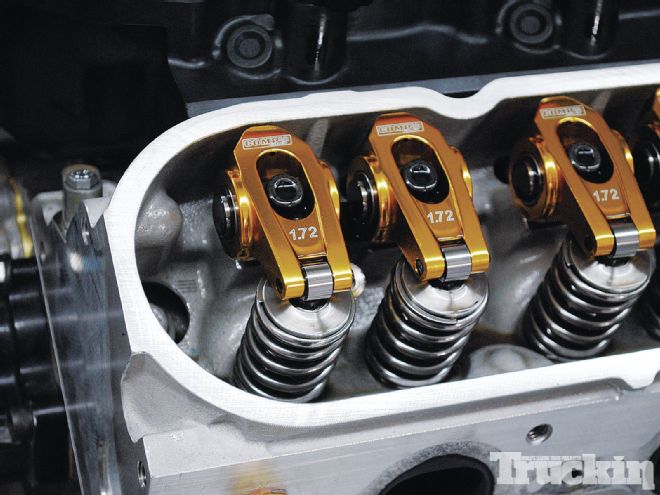

Like the wild 5.3-liter, this 383 version pushed the limits of driveability, but boy howdy did it make power. Using a 5.3L block, we bored and stroked the 5.3-liter to achieve a final displacement of 383 ci. Unlike the mild version that featured a static compression of 9.5:1, this 383 was sporting flat-top pistons that pushed the static compression ratio to 11.0:1. The elevated compression ratio was combined with a set of TEA Stage 2.5 LS6 heads, an aggressive COMP 289LR HR14 cam and FAST LSRXT (truck) intake. Wanting to maximize power, we even installed a set of 1.72:1-ratio aluminum roller rockers and swapped out the 1¾-inch headers for larger 1⅞-inch versions from American Racing Headers. The extra breathing paid off, as the 5.3L 383ci stroker produced 603 hp and 544 lb-ft of torque. Torque production exceeded 525 lb-ft from 4,400 rpm to 5,900 rpm, making for one sweet torque curve.
| 26. The wild 383 demonstrated what is possible with a 5.3L stroker by belting out 603 hp at 6,400 rpm and 544 lb-ft of torque at 5,400 rpm.
| 27. Torque production from the stroker exceeded 525 lb-ft from 4,400 rpm to 5,900 rpm.
