Street Sweeper
Before You Make Smoke, Make Sure Your Shifter Is In The Right Position. We Show You How To Make An Inexpensive Shifter Pedestal Without Sacrificing Safety, Looks, Or Comfort.
Preparing your musclecar for the rigors of highway cruising is hard enough without the added requirements of making it NHRAlegal, fast, and safe for the track. In some instances, doing one can even go against the grain of the other, for instance, when deciding whether or not to equip your car with a rollbar. Our '68 Chevelle, Project Street Sweeper, is a good example. We wanted a real pumpgas street car capable of being driven every day, but also capable of 11-second e.t.'s in the quarter-mile. From the beginning, we knew our raggedy old aftermarket shifter wasn't going to hack it for the street or the track, and we saw it as an opportunity to improve our situation twofold: make things more comfy and cool-looking cruising on the highway, and make it rock-solid reliable at the track.
When we last checked in with the Street Sweeper '68 Chevelle (January 2007), we had just installed a brace of Stewart-Warner gauges.
We found the win-win answer to our problem with TCI's Outlaw shifter. It's got a comfortable pistol grip, great looks for the street, it's affordable at around $250 street price, and it's got the solid construction we were looking for. And don't forget the required NHRA/IHRA safety features like reverse lock-out. The Outlaw shifter is available with or without a brushed and anodized steel cover, and comes with all the hardware (including a five-foot transmission cable) necessary for hook-up to any standard three-speed trans.
We coupled the Outlaw shifter to one of TCI's new Super StreetFighter Turbo 400 transmissions when we installed our Howitzer 496ci big-block a few months ago. Besides having the beefcake needed to easily support our 630 lb-ft of torque, the Super StreetFighter trans has a dual-purpose valvebody that offers complete manual control of gear selection when manually shifted, but reverts to fully automatic in the "D" (Third gear) position. At the track, we'd be able to pull the lever all the way back into "1" to launch, then bang it forward into "2" without looking. For "Third," just squeeze the lever and bang it again. This was the perfect solution for our dual-purpose street car-manual control at the track, set itand forget it on the street. The Outlaw shifter would only make the experience more enjoyable once harnessed to the Super StreetFighter trans.

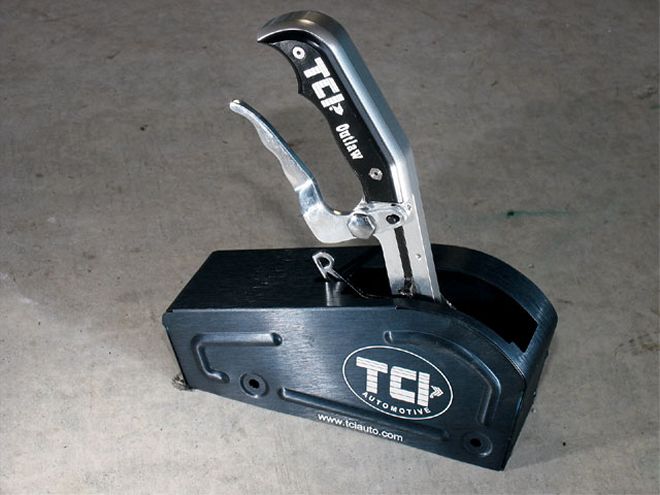

Our story starts with TCI's Outlaw shifter, which has an inviting billet aluminum pistol grip handle. These shifters are rugged, and since we put ours in months ago, we've beaten the wee out of it with no problem. Our three-speed model (PN 616231) works with all popular GM, Ford, and Chrysler three- and four-speed transmissions.
The last piece of the puzzle was where and how to position the shifter so that it would be easy to reach on the street without interfering with seat adjustment and legroom, yet close enough to grab at the track without bending over or peeling your eyeballs off the track. Since our Chevelle has a bench seat with an original column shift, a console wasn't an option. We liked the easy-cruising feel of the bench seat, and we didn't want to go with bucket seats just yet. The only solution was a custom pedestal for the shifter. We weighed our options and decided to design one out of cardboard and have it cut out in steel on a waterjet machine.

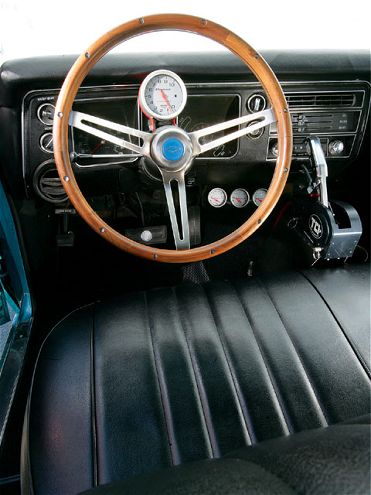

Making the pedestal out of cardboard allowed us to mock up the shifter position and test it beforehand. We could then make any necessary changes before committing anything to steel. We were so pleased with the results that we added some cupholders cut from old 4-inch exhaust pipe, painted the whole thing with some textured metal- lic graphite paint from Dupli-Color, and bolted it to the trans tunnel with four large anchor bolts. On the track, the TCI Outlaw shifter is now in a perfect position for racing. On the street, the handle is in a comfortable position, and the shifter is off the floor for all to admire.

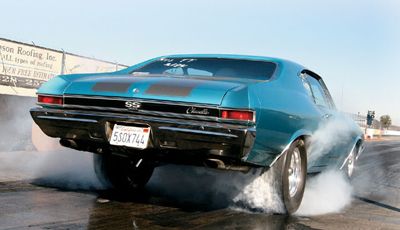

We're getting closer to revealing all the details of our first dragstrip outing in the '68 Chevelle. All we can say for now is that the first time out, we accomplished our goal of putting the naturally aspirated pump-gas beast into the 11s with a best run of 11.70 at 113 mph. (And the TCI shifter worked like a charm!) There's more in it, too, but before we charge ahead, we owe you more details on how we got there. Next month, we'll show you how we tackled a potentially big problem we encountered with oil starvation.
Stuff You'll Need
* Straightedge
* Marker
* Measuring tape
* Masking tape
* Cardboard or chipboard
* Razor blade
* 16-gauge steel sheet
* 4-inch steel tubing (optional)
* MIG welder
* Assortment of hand tools
* Calibrated eyeball
