Transmission swaps, modified 4x4s, and custom buggies almost always require shifter modifications or completely new assemblies. Our CJ-8 project was one such vehicle that required a new shifter since we stuffed a Dodge 46RE automatic transmission under the Jeep. Lokar Performance Products has been manufacturing quality shifter assemblies for over 20 years. In the Lokar catalog we found a 16-inch Nostalgia automatic shifter that would work perfectly on our Scrambler project. Compiled here are some highlights and tips from our shifter install. Lokar offers a full line of manual and automatic shifters for just about any transmission and custom application.

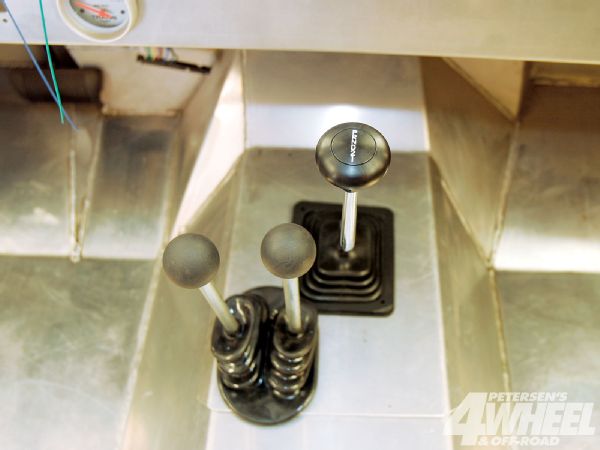

cj8 Lokar Shifter Assembly shifters Photo 28012070 The 16-inch shifter was a good choice for our project: Its length placed the shift knob within comfortable reach, which will make it easy to shift from the driver seat. The auto-shifter features a smoothly operating lockout button. We also like the shifter's retro look. PhotosView Slideshow Lokar shifter kits come complete with all the hardware and detailed instructions needed. Most assemblies will be completely bolt-in, while others will require minor modifications, such as cutting threaded linkage rod to length or slightly modifying factory parts.
The Lokar shifter assemblies should be preassembled and loosely bolted in to make sure all components fit. Once everything is in place the fastening hardware should be tightened and shift linkage adjusted properly.
The guys at Overkill Engineering helped with this install and had to grind the linkage ball joint off of the factory transmission arm to accept the Lokar connection bolt. The back of the stud was ground off, and then it was pushed out of the arm.
PhotosView Slideshow The entire shifter assembly was easy to install; the kit consists of two side mounting plates, a top plate the shift lever mounts to, and linkage.
The shifter linkage is designed for smooth operation and shifting. Shifter boots and indicators are also available from Lokar.
