Nissan Repair: Sentra blower motor wiring, followup questions, dumb questions


Question
Nissan Repair: Sentra blower motor wiring, followup questions, dumb questions
Motor
It told me I had to many followup questions.

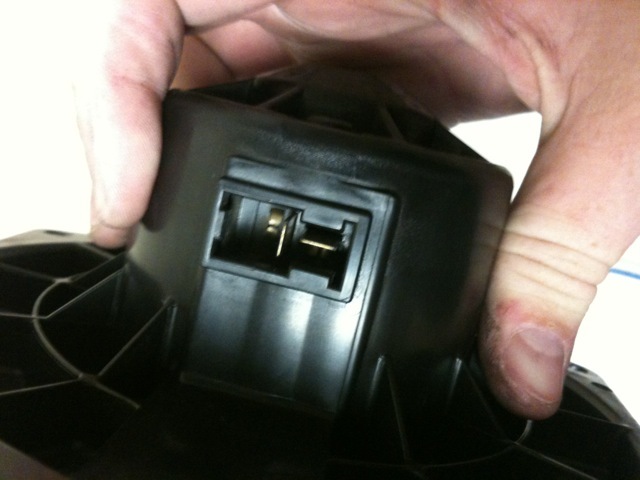

Okay I attached an image of what the plug looks like on the old motor, so do I need to find that plug of a female spade?
sorry If I am asking alot of dumb questions.

My new motor doesn't have a connector, just a red and black wire. And it does fit, I just need to figure out how to join the wires.

Answer
Hi Chad -

OK, yes, find the female spade that fits, and connect the wires. As I mentioned, the striped wire that went to the motor on the old connector will be the red wire connection. Comparing the terminals and connector on the old motor, you should be able to determine which terminal was the striped wire.

If you are saying that the new motor does not have a connector, but just a red and black wire, then simply use a bullet connector to join each wire.

Hope this helps, trying not to be too confusing -
LOL
calvin
