The Chevy Suburban comes equipped with a stereo system that offers multiple speakers, including mid-range speakers in the door panels of the vehicle. The door speakers are covered by a speaker grill, but require that you remove the door panels to access the speaker for repairs or replacement. Suburban owners can choose to have their door speakers removed by an audio technician at an aftermarket retailer, or you can remove the speakers yourself and save the cost of labor.
Disconnect the negative battery cable from the Suburban battery with a 10 mm wrench.
Roll down the window.
Remove the panel that surrounds the door lock with a trim panel removal tool.
Pry the panel that surrounds the electrical controls away from the door with the trim-panel removal tool.
Push the tabs of the wire connectors to release the wiring from the panel. Remove the 7 mm screw beneath the electrical control panel with a 7 mm socket and drive. Remove the 7 mm screw beneath the door handle.
Remove the panel that surrounds the door-release handle with the trim panel removal tool.
Pry the triangular trim panel away from the door with a trim-panel removal tool. The panel is in the forward most corner of the window. Remove the three, 10 mm screws behind the panel with a 10 mm socket and drive.
Pry the reflector lamp at the lower left corner of the door panel away from the door with a trim-panel removal tool. Disconnect the electrical wiring from the reflector lamp.
Grab the door panel at the arm rest and pull the entire panel upward and away from the door. The panel will detach from the door revealing the factory speaker.

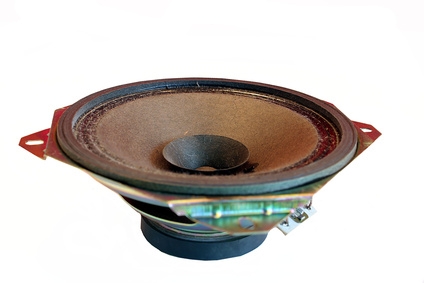

Remove the four screws surrounding the speaker with a Philips-head screwdriver. Pull the speaker from the door and disconnect the wiring from the back.
